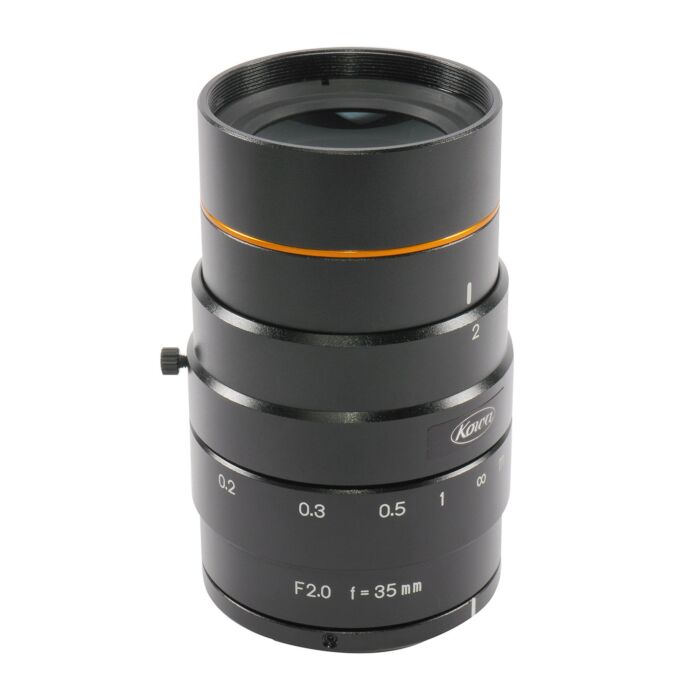

Kowa LM35XC 4/3" 35mm 20MP F2.0 Manual Iris C-Mount Lens
High-Precision Kowa LM35XC Lens for Industrial and Machine Vision Applications
Kowa lenses, known for their superior optical performance and innovative design, are widely trusted in industrial and machine vision applications. The Kowa LM35XC 4/3" 35mm 20MP C-Mount Lens offers a combination of precision and versatility that is ideal for industries requiring high-end inspection capabilities, such as electronics manufacturing, pharmaceuticals, and semiconductor industries.
With a high resolution of up to 20 megapixels and compatibility with advanced sensors like the Sony IMX387 and Sony IMX540, this lens ensures detailed imaging even in demanding environments. The low distortion and broadband coating enhance image clarity across a wide spectrum, from visible light (VIS) to near-infrared (NIR) wavelengths, making it suitable for complex inspection tasks requiring detailed, accurate image capture. Its manual focus and aperture control provide flexibility in a variety of applications, from machine vision systems to high-speed manufacturing environments.
The Kowa LM35XC lens is engineered for durability, withstanding a temperature range of -10°C to +50°C, ensuring reliable performance in various conditions. Its compact and lightweight design further enhances its appeal for automated systems where precision and durability are crucial.
Features:
- 20 Megapixel resolution
- 35mm focal length
- Low distortion for high-precision imaging
- Manual focus and aperture control
- Transmission from visible light (VIS) to near-infrared (NIR)
- C-mount compatibility
- Temperature range: -10°C to +50°C
Applications:
- High-end quality control and inspection
- Electronics and semiconductor manufacturing
- Pharmaceutical and medical imaging
- Robotics and automated systems
- High-speed production line monitoring
| Aperture (F-stop) | 2 - 16 |
| Aperture (control) | Manual |
| Application field | Broadcast, Machine Vision |
| Back focus in air (mm) | 15.2 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 100 |
| Field of view at minimum working distance, vertical (mm) | 75 |
| Filter size (mm) | M37.5 x P0.5 |
| Focal length (mm) | 35 |
| Focus range (m) | 0.2 - ∞ |
| Megapixel | 20 |
| Mount | C-mount |
| Pixel size (µm) | 3 |
| Resolution, centre (lp/mm) | 160 |
| Resolution, margin (lp/mm) | 80 |
| Sensor size | 4/3" |
| Series | XC |
| Size (mm) | Ø45 x 74 |
| TV distortion (%) | -0.17 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (400nm – 1000nm), Peak Coating (400nm – 1000nm) |
| Weight (g) | 210 |
