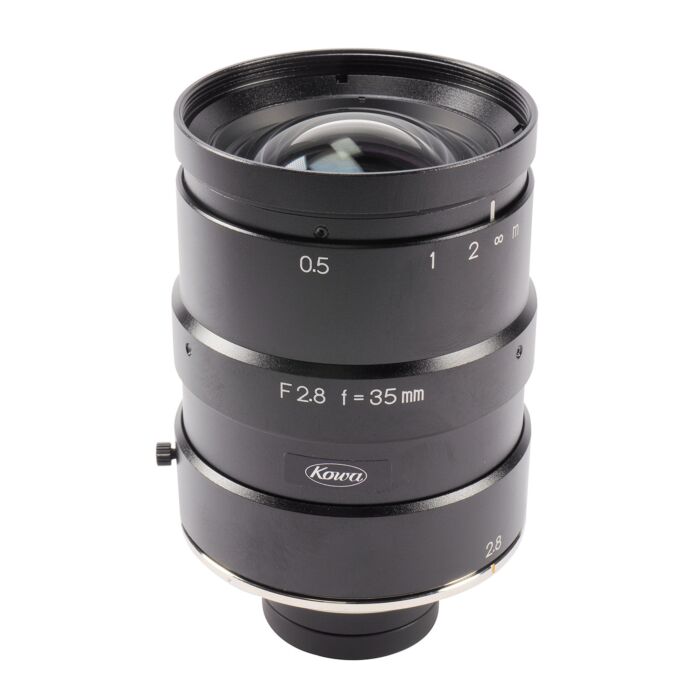

Kowa LM35LF | 35mm F-Mount Line Scan Lens

Kowa LM35LF 35mm F-Mount Line Scan Lens: Precision for Industrial and Machine Vision Applications

The Kowa LM35LF 35mm F-Mount Line Scan Lens exemplifies excellence in industrial and machine vision optics. Engineered specifically for 4K line scan cameras, this lens boasts a focal length of 35mm, making it ideal for applications requiring high-resolution imaging. It is optimized for sensors with a pixel size of 7.5µm or greater, ensuring exceptional image clarity and detail across a range of industrial environments.

Designed with manual iris control, the LM35LF allows for precise adjustments within an iris range of f/2.8 to f/22, accommodating various lighting conditions and ensuring consistent image quality. The lens's resolution capabilities are impressive, offering 160 line pairs per millimeter at the center and 63 lp/mm at the corners, with minimal distortion of -0.15%. Its focusing range spans from 0.4 meters to infinity, providing flexibility for diverse imaging tasks.

Constructed with durability in mind, the lens operates within a temperature range of -10°C to +50°C, making it suitable for harsh industrial settings. The Kowa LM35LF is a reliable choice for applications such as automated inspection, quality control, and precision measurement, where clarity and accuracy are paramount.

Features:

• Focal Length: 35mm
• Optimized for 4K line scan cameras
• Manual iris control with range f/2.8 - f/22
• High resolution: 160 lp/mm (center)
• Minimal distortion: -0.15%
• Focusing range: 0.4m to ∞
• Operating temperature: -10°C to +50°C

Applications:

• Automated Inspection Systems
• Quality Control and Assurance
• Precision Measurement
• High-Speed Production Lines
• Advanced Imaging for Research
