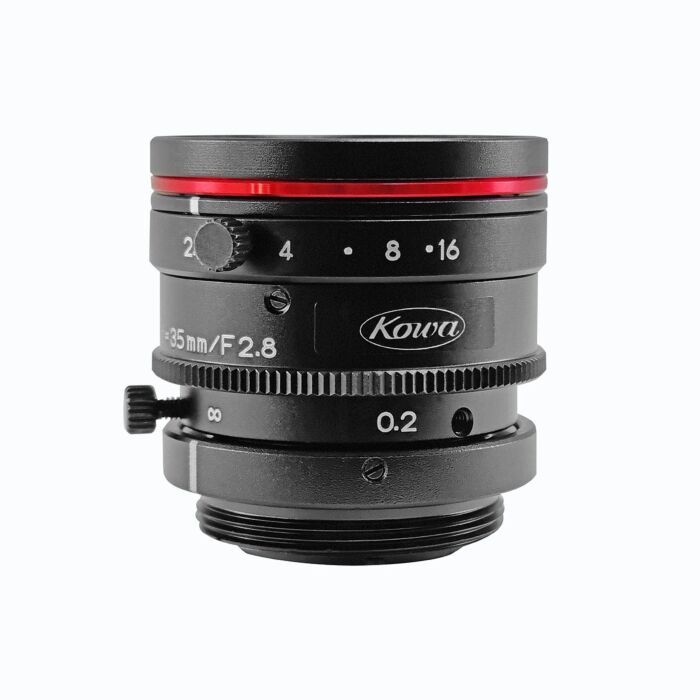

Kowa LM35JC5MC | 2/3" 35mm 5MP Ultra Compact Lens

Kowa LM35JC5MC: The Pinnacle of Precision in Machine Vision

The Kowa LM35JC5MC 2/3" 35mm 5MP Ultra Compact Lens, available from Aegis Electronic Group Inc., is designed for high-precision machine vision and industrial applications. This lens stands out as the smallest 5MP lens in its class, making it ideal for environments where space is limited. Its 35mm focal length and compatibility with 2/3" sensors ensure optimal performance and versatility. The lens is engineered to work seamlessly with sensors that have a pixel size from 3.45μm, including popular models like Sony IMX250, IMX252, IMX264, and IMX265.

The Kowa LM35JC5MC features manual iris and focus control, providing users with the flexibility to adjust settings for specific needs. Its VIS wavelength range of 380nm to 780nm covers the entire visible spectrum, ensuring clear and accurate imaging. The lens delivers high resolution with 160 lp/mm at the center and 125 lp/mm at the corners, ensuring detailed and precise images.

This ultra-compact lens is perfect for a wide range of applications, including quality control inspection, automated optical inspection, and robotics vision systems. It is also suitable for precision measurement systems and industrial imaging tasks, offering reliable performance in demanding environments. Enhance your machine vision systems with the Kowa LM35JC5MC and achieve superior imaging quality.

Features:

• 35mm focal length
• 2/3" sensor size compatibility
• 5MP resolution
• Supports pixel sizes from 3.45μm
• Manual iris and focus control
• Ultra-compact design
• VIS wavelength range (380nm - 780nm)
• C-mount compatibility
• High center and corner resolution
• Suitable for Sony IMX250, IMX252, IMX264, IMX265 sensors

Applications:

• Quality control inspection
• Automated optical inspection
• Robotics vision systems
• Precision measurement systems
• Industrial imaging
• High-resolution imaging in manufacturing
• Surveillance and security systems
