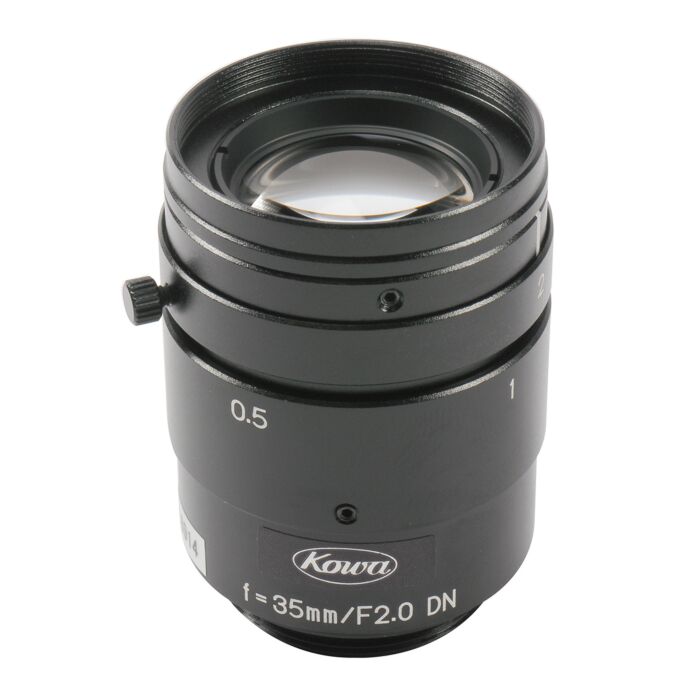

Kowa LM35JC5M-IR | 2/3" 35mm 5MP IR Corrected Lens
Kowa LM35JC5M-IR 35mm 5MP IR Corrected Lens for Industrial and Machine Vision Applications
The Kowa LM35JC5M-IR 2/3" 35mm 5MP IR Corrected Lens from Aegis Electronic Group Inc. is a superior choice for industrial and machine vision applications. This lens features a high-resolution capability of up to 5 megapixels, ensuring crisp and detailed images. The IR correction makes it ideal for day and night usage, offering versatility across various lighting conditions.
Constructed with a robust metal mount and housing, the LM35JC5M-IR lens is designed for durability and long-term use in demanding environments. The lens supports a manual focus and iris control, allowing precise adjustments to capture the perfect shot. With a focal length of 35mm, this fixed focal lens is perfect for capturing distant subjects with clarity.
This lens is compatible with 2/3" sensors and offers a pixel size of 3.5µm, ensuring high-quality image capture. The wide wavelength range (380nm - 780nm) covers both visible and infrared spectra, making it suitable for a variety of applications, including traffic control and intelligent transportation systems (ITS).
Choose the Kowa LM35JC5MIR lens for your industrial and machine vision needs to benefit from its reliability, high performance, and exceptional image quality.
Features:
- Up to 5 Megapixel resolution
- IR corrected for day and night use
- Durable metal mount and housing
- Manual focus and iris control
- 35mm fixed focal length
- Compatible with 2/3" sensors
- Wide wavelength range (380nm - 780nm)
Applications:
- Traffic control
- Intelligent transportation systems (ITS)
- Industrial inspection
- Machine vision systems
- Surveillance and security systems
- Robotics and automation
- Quality control in manufacturing
| Focal Length (mm) | 35 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 3,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2 - 22 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), IR-corrected (Day & Night) |
| Focusing Range (m) | 0,3 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 75,8 |
| Shooting range at MOD, vertical (mm) | 56,6 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 125 |
| Distortion (TV) (%) | -0,3 |
| Back focus in air (mm) | 19,2 |
| Filter Size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø34 X 43 |
| Weight (g) | 100 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | JC5M-IR |
| Application | ITS/Traffic Control |
