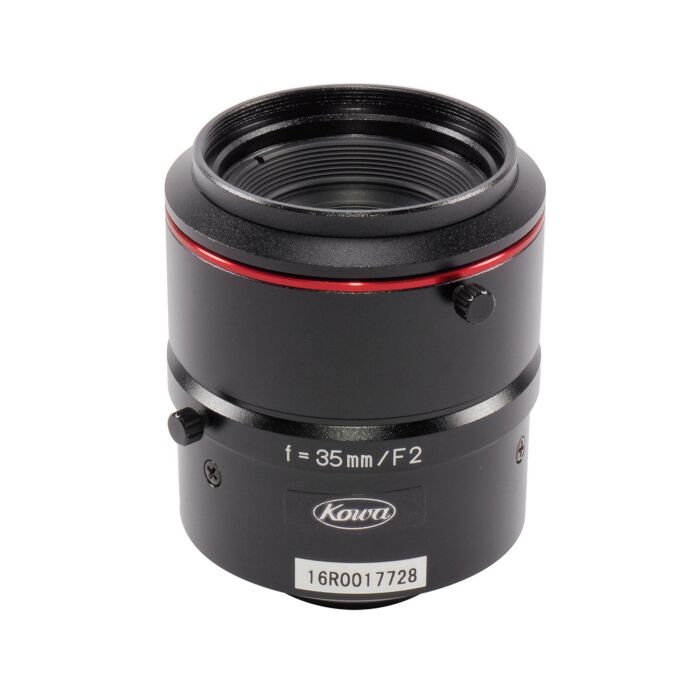

Kowa LM35JC10M | 2/3" 35mm 10MP C-Mount Lens
Superior Optics for Precision Imaging: Kowa LM35JC10M 10MP C-Mount Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM35JC10M 2/3" 35mm 10MP C-Mount Lens, an exceptional choice for high-resolution imaging in industrial and machine vision applications. Designed for sensors with a pixel size of 2.5μm or larger, this lens is highly compatible with popular sensors like the Sony IMX250, Sony IMX264, and Aptina MT9D131. Its fixed focal length of 35mm, combined with manual iris and focus controls, provides precise control over imaging, ensuring superior image quality.
The Kowa LM35JC10M features a broad wavelength range from 380nm to 1000nm, making it suitable for various lighting conditions. Its robust construction and broad band coating enhance durability and performance in challenging industrial environments. With a minimal distortion rate of 0.05% and high resolution of 200 lp/mm at the center, this lens delivers sharp and accurate images, essential for machine vision tasks.
Ideal for applications such as quality control, inspection, and automation, the Kowa LM35JC10M lens ensures that every detail is captured with precision. Experience the reliability and excellence of Kowa optics with this top-tier lens, and elevate your imaging capabilities to new heights.
Features:
- 35mm focal length
- Compatible with 2/3" sensors
- Suitable for Sony IMX250, IMX264, and Aptina MT9D131
- 10MP resolution
- Manual iris and focus control
- Broad wavelength range (380nm - 1000nm)
- Low distortion (0.05%)
- Robust construction for industrial environments
Applications:
- Quality control inspections
- Automated inspection systems
- Robotics and automation
- Precision measurement
- Surveillance and security systems
- High-speed imaging
- Broadcast applications
| Focal Length (mm) | 35 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 2,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm) |
| Focusing Range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 23,4 |
| Shooting range at MOD, vertical (mm) | 17,6 |
| Resolution, Center (lp/mm) | 200 |
| Resolution, Corner (lp/mm) | 160 |
| Megapixel | 10 |
| Distortion (TV) (%) | 0,05 |
| Back focus in air (mm) | 14,2 |
| Filter Size (mm) | M34 x P0,5 |
| Size (mm) | Ø43 X 49 |
| Weight (g) | 160 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | JC10M |
| Application | Machine Vision, Broadcast |
