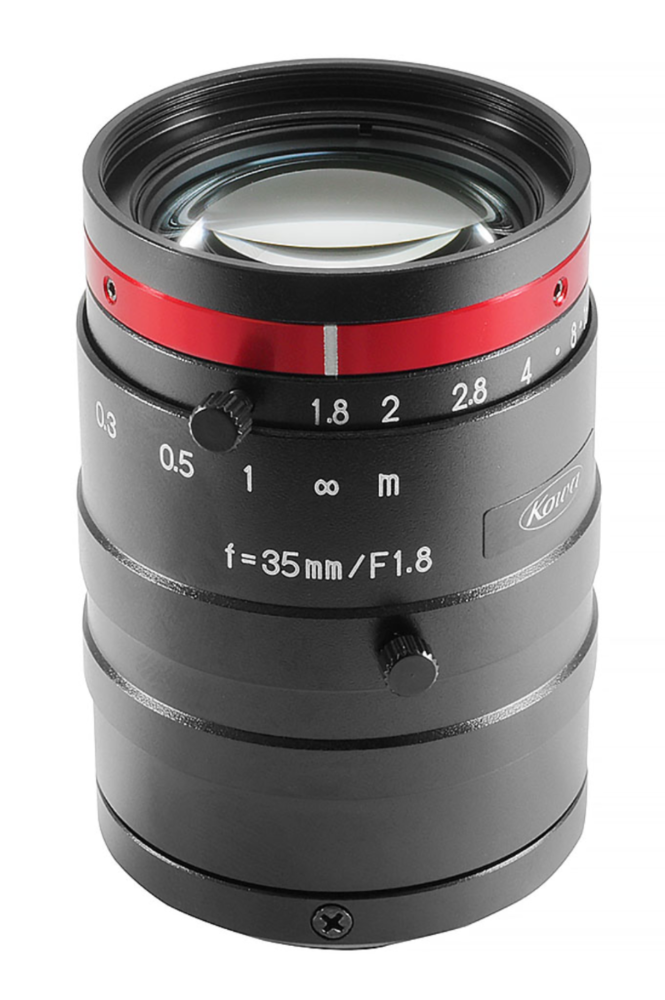

Kowa LM35HC-VIS-SW | 1" 35mm 12MP VIS-SWIR Lens

Enhance Your Imaging with Kowa LM35HC-VIS-SW: A High-Performance Lens for Machine Vision

The Kowa LM35HC-VIS-SW 1" 35mm 12MP VIS-SWIR lens is designed for industrial and machine vision applications that require superior imaging performance. Featuring a high resolution of 12 megapixels and compatibility with sensors such as the Sony IMX990 and IMX991, this lens is ideal for capturing detailed images in a wide spectral range from 450nm to 2000nm, including both visible and short-wave infrared (SWIR) light. With an ultra-low distortion rate of -0.41%, this compact lens ensures high-precision imaging in demanding environments like traffic control, surveillance, and industrial inspections.

Built with a C-mount and a focal length of 35mm, the LM35HC-VIS-SW supports sensors with a pixel size of 3.1μm or greater. It offers a manual aperture control (f/1.8-f/16) for flexible light management and provides sharp resolution of up to 160 lp/mm at the center. Its durable construction and wide temperature range (-10°C to +50°C) make it suitable for outdoor and rugged environments. Whether it's for broadcasting, intelligent traffic systems, or machine vision systems, the Kowa LM35HC-VIS-SW lens is a robust choice for precise imaging needs.

Features:

• 12 Megapixel resolution
• 1" C-mount lens for sensors with 3.1μm or larger
• Wide wavelength range from 450nm to 2000nm
• 35mm focal length, manual focus, and aperture control
• Ultra-low distortion (-0.41%)
• Compact and durable for industrial use

Applications:

• Intelligent traffic systems (ITS)
• Industrial quality inspection
• Surveillance and security systems
• Precision imaging in manufacturing
• Material sorting and analysis in SWIR
