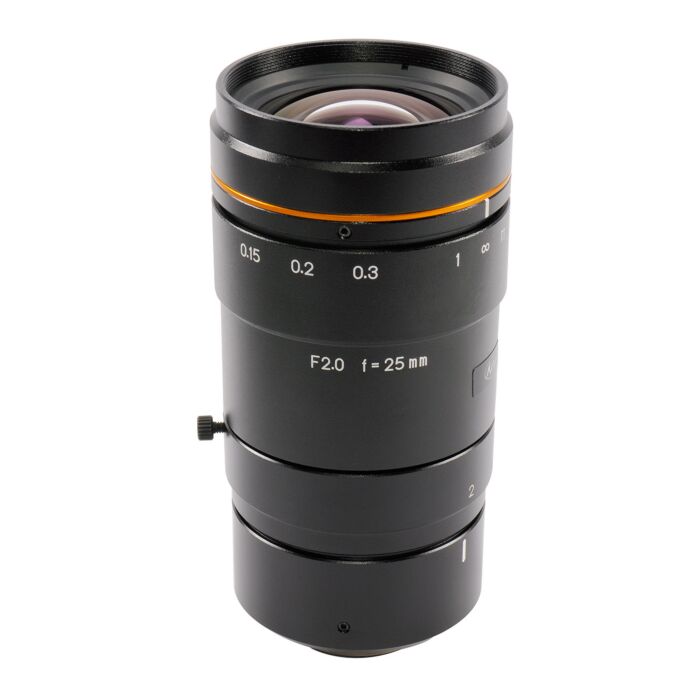

Kowa LM25XC | 4/3" 25mm 20MP C-Mount Lens
Precision and Versatility: Kowa LM25XC 25mm 20MP C-Mount Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM25XC 4/3" 25mm 20 Megapixel C-Mount Lens, a high-performance lens designed to meet the rigorous demands of industrial and machine vision applications. This lens boasts a 25mm focal length, making it ideal for capturing detailed images with exceptional clarity. It is perfectly suited for sensors with a pixel size of 3.0μm or larger, including the Sony IMX387 and Sony IMX540, ensuring high compatibility across various imaging systems.
The Kowa LM25XC lens features manual iris control with an iris range from F2 to F16, allowing for precise adjustment of light intake to achieve optimal image quality. Its robust construction and broad wavelength range from 380nm to 1000nm make it versatile for a wide range of lighting conditions, ensuring reliable performance in diverse environments.
With a resolution of 160 lp/mm at the center and 80 lp/mm at the corners, this lens provides sharp, high-resolution images essential for detailed inspection and analysis in machine vision systems. Its minimal distortion of -0.57% ensures accurate image representation, which is critical for industrial applications requiring precision and accuracy.
Ideal for broadcast, machine vision, and other industrial applications, the Kowa LM25XC 25mm 20MP C-Mount Lens is a reliable choice for professionals seeking superior image quality and performance.
Features:
- 25mm focal length
- 20 Megapixel resolution
- Compatible with 4/3" sensors
- Manual iris control (F2 - F16)
- Broad wavelength range (380nm - 1000nm)
- High resolution: 160 lp/mm (center), 80 lp/mm (corners)
- Minimal distortion (-0.57%)
- Robust construction suitable for industrial use
Applications:
- Automated optical inspection
- Quality control systems
- Industrial robotics
- High-precision measurement systems
- Broadcasting and media production
- Scientific research imaging
| Focal Length (mm) | 25 mm |
| Sensor Size | 4/3" |
| Pixel Size (µm) | 3 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F2 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm) |
| Focusing range (m) | 0,15 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 125 |
| Shooting range at MOD, vertical (mm) | 93 |
| Resolution (Center, Corner) | 160lp/mm,80lp/mm |
| Megapixel | 20 |
| TV Distortion (%) | -0,57 |
| Back Focus in Air (mm) | 24,3 |
| Filter Size (mm) | M40.5 x P0.5 |
| Size (mm) | Ø45 X 89 |
| Weight | 250 |
| Temperature Range | -10°C - +50°C |
| Series | XC |
| Application | Broadcast, Machine Vision |
