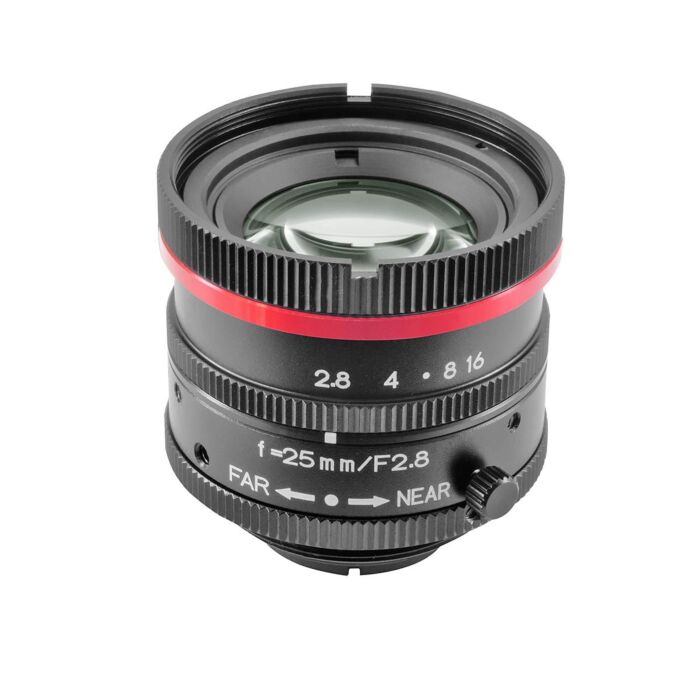

Kowa LM25JC5MC-WP | 25mm Ultra Compact 2/3" Ruggedized Waterproof Lens
Kowa LM25JC5MC-WP: Ultra-Compact, Ruggedized, and Waterproof Lens for Superior Imaging
Aegis Electronic Group Inc. is proud to offer the Kowa LM25JC5MC-WP 25mm Ultra Compact 2/3" Ruggedized Waterproof Lens, a high-performance solution for demanding machine vision and industrial applications. Kowa’s JC5MC-WP series features a 2/3” 5 megapixel C-Mount design that is small, lightweight, and exceptionally robust. These lenses are engineered to withstand harsh environments, boasting waterproof and vibration-resistant properties, making them ideal for use in challenging industrial settings.
The Kowa LM25JC5MC-WP lens is designed for sensors with a pixel size of 3.5μm or greater and is compatible with popular sensors such as Sony’s IMX250, IMX252, IMX264, and IMX265. Its innovative mechanical design ensures stability under strong vibrations and shocks, while the manual focus and iris controls offer precise adjustments. The lens also features an IP67 waterproof rating, guaranteeing reliable performance in wet conditions.
Applications benefiting from this lens include factory automation, inspection systems, and outdoor surveillance. With a resolution of 160 lp/mm at the center and 100 lp/mm at the corners, the Kowa LM25JC5MC-WP delivers sharp, high-quality images, making it a top choice for professionals seeking durable and high-resolution imaging solutions.
Features:
- 25mm focal length
- 2/3” 5 megapixel C-Mount design
- Ultra-compact and lightweight (51g)
- Waterproof (IP67 rating)
- Vibration and shock resistant
- Manual focus and iris control
- High resolution: 160 lp/mm (center), 100 lp/mm (corner)
- Compatible with sensors like Sony’s IMX250, IMX252, IMX264, and IMX265
- Wide operating temperature range: -10°C to +50°C
Applications:
- Factory automation
- Inspection systems
- Outdoor surveillance
- Robotics
- Quality control
- Process monitoring
- Environmental monitoring
- Autonomous vehicles
- Machine learning and AI vision systems
| Focal Length (mm) | 25 |
| F-Number | F=2.8-16 |
| Picture Size | 6.6 x 8.8mm / 5.4 x 7.2mm / 4.8 x 6.4mm |
| Angle Of View | VER. ANGLE: 15.0° / 12.4° / 11.0° HOR. ANGLE: 20.0° / 16.4° / 14.6° DIA. ANGLE: 24.8° / 20.4° / 18.2° |
| Distortion (TV) | -0.06% / 0.02% / 0.02% |
| Field Of View | VERTICAL: 56mm / 46mm / 41mm HORIZONTAL: 75mm / 62mm / 55mm DIAMETER: 95mm / 77mm / 69mm |
| Minimum Focus Distance | 0.2m |
| Flange Back | 17.526mm in air |
| Back Focus | 11.7mm in air |
| Filter Screw Size | M30.5x0.5 |
| Front/Rear Effective Diameter | FRONT Ø18.9mm REAR Ø13.7mm |
| Mount | C-Mount |
| Exit Pupil | -58.8mm |
| Temperature Range | -10°C - +50°C |
| Storage Temperature Range | -20°C - +60°C |
| Resolution Center/Corner | CENTER 160lp/mm CORNER 100lp/mm |
| Weight | 51g |
