Kowa LM25JC | 2/3" 25mm MP C-Mount Lens

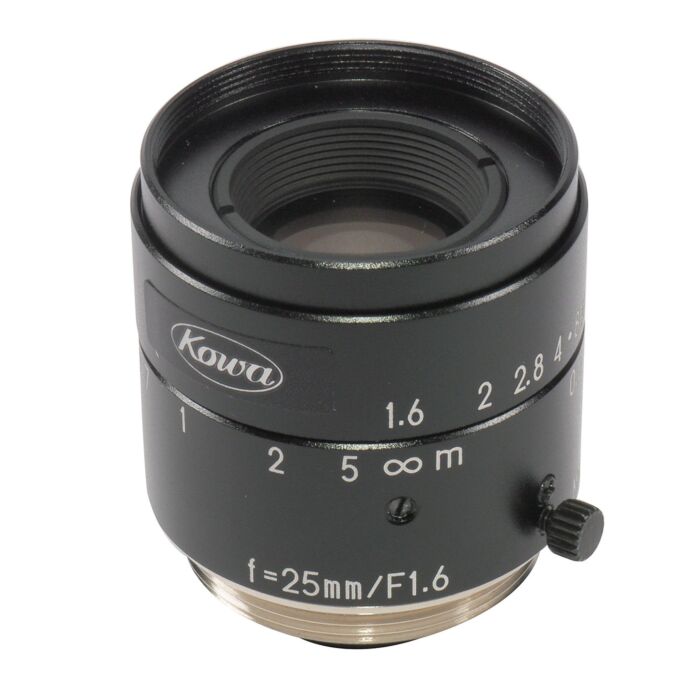

Kowa LM25JC 25mm C-Mount Lens for Machine Vision
Kowa’s LM25JC is a high-performance 2/3" Megapixel C-mount lens specifically engineered for industrial and machine vision applications. With a focal length of 25mm and compatibility with sensors such as the e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001, this lens ensures exceptional image quality and precision. Its manual focus and aperture control (ranging from f/1.6 to f/16) allow users to adjust settings to achieve the desired depth of field and exposure, enhancing image clarity across various industrial environments.
The LM25JC lens supports sensors with a pixel size of 5.0μm, making it perfect for applications that require high-resolution imagery. It delivers remarkable resolution, achieving up to 100 line pairs per millimeter at the center and 60 line pairs per millimeter at the margins. Designed for temperature ranges from -10°C to +50°C, this lens maintains optimal performance in diverse operational conditions, contributing to its suitability for quality assurance, automation, and inspection tasks.
Investing in Kowa lenses means prioritizing reliability and quality for your industrial imaging needs. Experience the difference today!
Features:
- Focal Length: 25mm for precise imaging
- Aperture Range: f/1.6 to f/16 for flexibility in lighting conditions
- Sensor Compatibility: Designed for 2/3" sensors like e2v EV76C560 and CMOSIS CMV2000
- Resolution: 100 lp/mm center, 60 lp/mm margin for superior clarity
- Temperature Range: Operates effectively from -10°C to +50°C
- Weight: Lightweight at 55g for easy installation
- Field of View: 72.1mm horizontal and 53.7mm vertical for broad coverage
Applications:
- Quality assurance in manufacturing
- Automated inspection systems
- Robotics and machine vision
- Surveillance and monitoring systems
- Medical imaging and diagnostics
- Precision agriculture and remote sensing
| Aperture (F-stop) | 1.6 - 16 |
| Aperture (control) | Manual |
| Application field | Machine Vision |
| Back focus in air (mm) | 10.32 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 72.1 |
| Field of view at minimum working distance, vertical (mm) | 53.7 |
| Filter size (mm) | M27 x P0.5 |
| Focal length (mm) | 25 |
| Focus range (m) | 0.2 - ∞ |
| Mount | C-mount |
| Pixel size (µm) | 5 |
| Resolution, centre (lp/mm) | 100 |
| Resolution, margin (lp/mm) | 60 |
| Sensor size | 2/3" |
| Series | JC |
| Size (mm) | Ø30 x 28 |
| TV distortion (%) | -0.6 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Peak Coating (400nm – 1000nm) |
| Weight (g) | 55 |
