Kowa LM25HC | 1" 25mm 5MP C-Mount Lens
Advanced Optics for Machine Vision: Kowa LM25HC 25mm 5MP C-Mount Lens

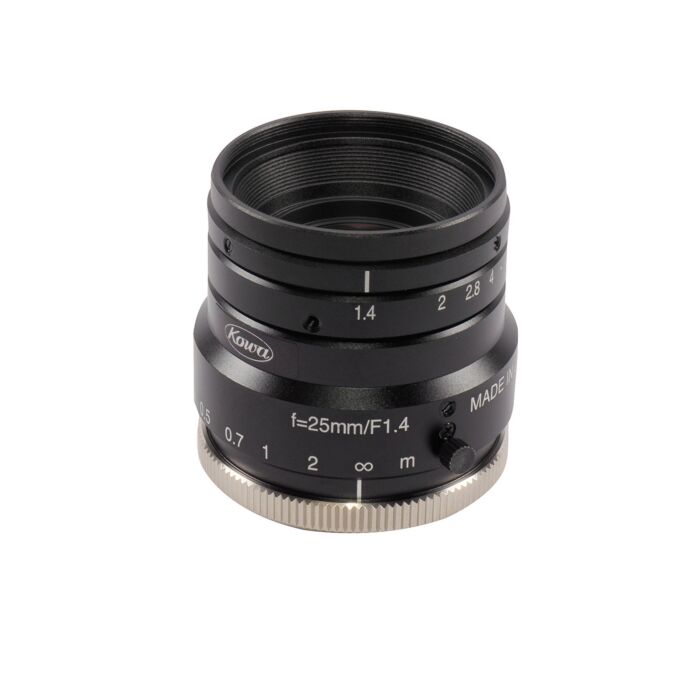

The Kowa LM25HC 1" 25mm 5MP C-Mount lens from Aegis Electronic Group Inc. stands out for its exceptional performance in industrial and machine vision applications. Designed with precision optics, this lens is optimized for sensors with a pixel size of 5.0μm or larger, making it an excellent choice for advanced imaging systems. Compatible with popular sensors such as the Sony IMX174, CMOSIS CMV4000, and Sony IMX249, the LM25HC delivers superior resolution and clarity.
This fixed focal length lens features a manual iris with an adjustable range of f/1.4 to f/16, allowing for precise control over light intake. It operates effectively within the visible wavelength range (380nm - 780nm) and provides impressive resolution of 120 lp/mm at the center and 80 lp/mm at the corners. The lens is engineered to minimize distortion and offer a broad focusing range from 0.3 meters to infinity, making it suitable for a wide array of industrial and machine vision applications, including broadcast, traffic control, and automated inspection systems.
Features:
- Focal Length: 25mm
- Sensor Size: 1"
- Pixel Size: 5µm
- Mount: C-mount
- Iris Control: Manual (f/1.4 - f/16)
- Resolution: 120 lp/mm (center), 80 lp/mm (corner)
- Distortion: -1%
- Focus Range: 0.3m to ∞
- Temperature Range: -10°C to +50°C
- Weight: 135g
Applications:
- Broadcast Imaging
- Traffic Control Systems
- Machine Vision Inspection
- Automated Quality Control
- Industrial Robotics
- Surveillance Systems
| Focal Length (mm) | 25 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0,3 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 160,7 |
| Shooting range at MOD, vertical (mm) | 119,2 |
| Resolution, Center (lp/mm) | 120 |
| Resolution, Corner (lp/mm) | 80 |
| Megapixel | 5 |
| Distortion (TV) (%) | -1 |
| Back focus in air (mm) | 16,5 |
| Filter Size (mm) | M35,5 x P0,5 |
| Size (mm) | Ø43 X 43 |
| Weight (g) | 135 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | HC |
| Application | Broadcast, ITS/Traffic Control, Machine Vision |
