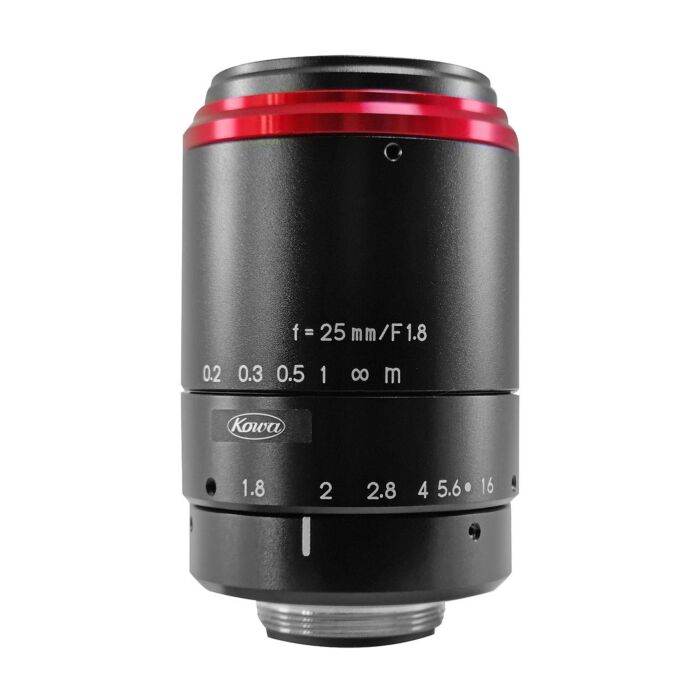

Kowa LM25FC24M | 1.1" 25mm 24MP C-Mount Lens

Kowa LM25FC24M: Precision 25mm C-Mount Lens for Advanced Machine Vision and Industrial Applications

The Kowa LM25FC24M is a top-tier 25mm C-Mount lens designed for machine vision and industrial applications requiring high precision and clarity. With a sensor size of 1.1 inches and a pixel size of 2.5μm, this lens is ideal for capturing detailed images in various environments. The lens boasts a resolution of 200 line pairs per millimeter at the center and 100 lp/mm at the corners, ensuring sharp and clear images across the entire field of view.

Engineered with broad band coating, the Kowa LM25FC24M covers a wavelength range from 380nm to 1000nm, making it versatile for various lighting conditions. The manual iris control, with an aperture range from f/1.8 to f/16, provides flexibility for different illumination levels. It is especially suitable for sensors like Sony IMX183 and IMX253, among others.

Ideal for applications such as traffic control, broadcast imaging, and machine vision, this lens offers excellent performance in challenging environments. Its robust design, with a temperature range of -10°C to +50°C, ensures reliable operation in diverse conditions.

Features:

• Focal Length: 25mm
• Sensor Size: 1.1"
• Resolution: 200 lp/mm (Center), 100 lp/mm (Corner)
• Manual Iris Control: f/1.8 - f/16
• Wavelength Range: VIS (380nm - 780nm), Broad Band (380nm - 1000nm)
• Pixel Size Compatibility: 2.5μm
• Temperature Range: -10°C to +50°C

Applications:

• Machine Vision Systems
• Broadcast Imaging
• Traffic Control Systems
• Industrial Inspection
• Quality Assurance
