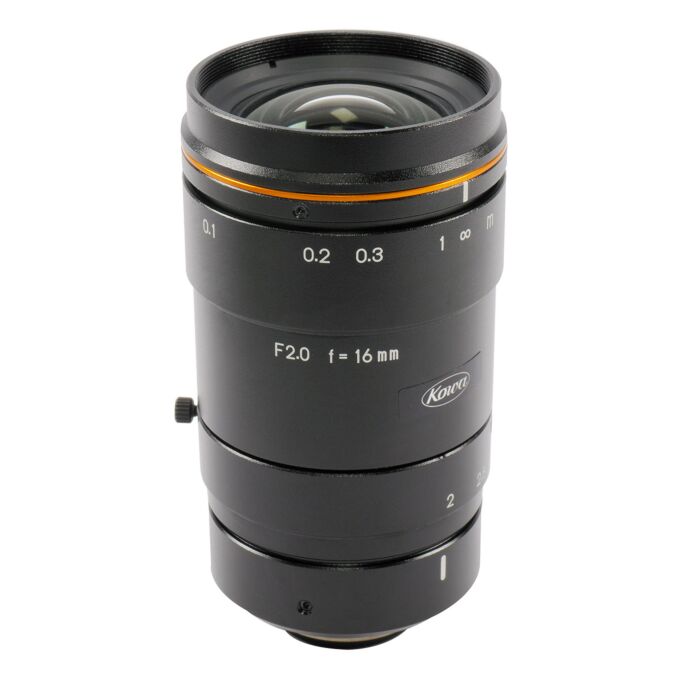

Kowa LM16XC | 4/3" 16mm 20MP C-Mount Lens
Unlock Superior Imaging with the Kowa LM16XC 16mm 20MP C-Mount Lens
The Kowa LM16XC is a 4/3" 16mm 20 Megapixel C-mount lens designed to deliver exceptional performance in industrial and machine vision applications. Crafted for sensors with a pixel size of 3.0μm or larger, this lens is compatible with high-end sensors such as the Sony IMX387 and Sony IMX540. The lens offers a manual iris control with an F-stop range from 2 to 22, ensuring precise light management for varied lighting conditions.
The LM16XC lens features a broad band coating (380nm - 1000nm) and VIS wavelength range (380nm - 780nm), making it versatile for a wide array of imaging needs. With a resolution of 160 lp/mm at the center and 80 lp/mm at the corners, it guarantees sharp and clear images. The lens is suitable for both close-up and distant shooting, thanks to its 0.1m to infinity focusing range. Its minimal distortion of 0.02% ensures accuracy in image representation, while the robust design, measuring Ø45 x 79.5 mm and weighing 250g, is built to withstand harsh industrial environments, operating in temperatures from -10°C to +50°C.
Ideal for applications like broadcast, quality control, and inspection systems, the Kowa LM16XC provides superior image quality and reliability. Explore its capabilities with Aegis Electronic Group Inc. today.
Features:
- 4/3" 20 Megapixel C-mount lens
- 16mm fixed focal length
- Compatible with Sony IMX387 and IMX540 sensors
- Manual iris control (F2 - F22)
- Broad band coating (380nm - 1000nm)
- High resolution: 160 lp/mm (center), 80 lp/mm (corner)
- Minimal distortion: 0.02%
- Robust design, operating temperature: -10°C to +50°C
Applications:
- Broadcast imaging
- Quality control systems
- Inspection systems
- Robotics vision systems
- Automated manufacturing
- Medical imaging
- Precision measurement systems
| Focal Length (mm) | 16 mm |
| Sensor Size | 4/3" |
| Pixel Size (µm) | 3 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2 - 22 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm) |
| Focusing Range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 135 |
| Shooting range at MOD, vertical (mm) | 101 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 80 |
| Megapixel | 20 |
| Distortion (TV) (%) | 0,02 |
| Back focus in air (mm) | 13 |
| Filter Size (mm) | M40,5 x P0,5 |
| Size (mm) | Ø45 X 79,5 |
| Weight (g) | 250 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | XC |
| Application | Broadcast, Machine Vision |
