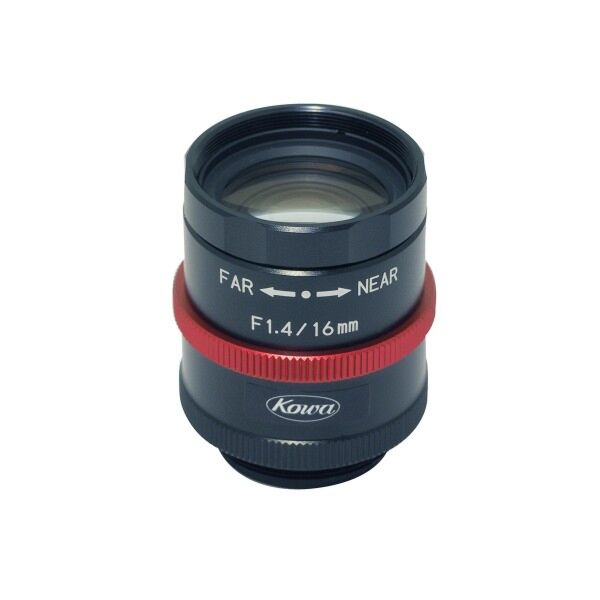

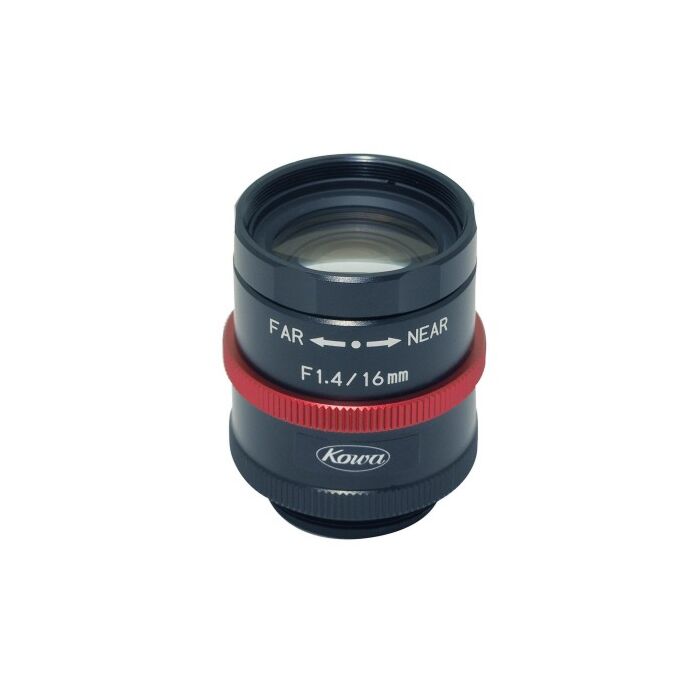

Kowa LM16JCM-WP | 2/3" Ruggedized Waterproof 16mm 2MP Lens
Unleash Superior Performance with the Kowa LM16JCM-WP 2/3" 16mm Ruggedized Waterproof Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM16JCM-WP 2/3" 16mm 2MP Ruggedized Waterproof Lens, a premium solution designed to meet the rigorous demands of industrial and machine vision applications. This high-performance lens is engineered for sensors with a pixel size of 4.5μm or more, including popular models like OnSemi Python500, e2v EV76C570, and Aptina MT9M131.
The LM16JCM-WP features a fixed focal length of 16mm and a high resolution of 2 megapixels, ensuring sharp and detailed imaging. Its robust construction includes IP67 waterproofing when paired with a suitable camera, making it ideal for use in harsh environments where strong vibrations and shocks are common. The manual iris control allows for precise adjustments, and the lens covers a wavelength range from 380nm to 780nm, suitable for various lighting conditions.
Whether you're working in manufacturing, quality control, or any other industrial setting, the Kowa LM16JCM-WP delivers reliable and consistent performance. Its compact size and lightweight design facilitate easy integration into existing systems. Invest in the LM16JCMWP to enhance your imaging capabilities and ensure superior performance in your demanding applications.
Features:
- 2/3" sensor compatibility
- 16mm focal length
- 2MP resolution
- Ruggedized for strong vibrations and shocks
- IP67 waterproof rating
- Manual iris and focus control
- VIS wavelength range (380nm - 780nm)
- Compact and lightweight design
Applications:
- Manufacturing quality control
- Automated inspection systems
- Robotics vision
- Surveillance in harsh environments
- High-precision measurement
- Industrial automation systems
- Outdoor machine vision applications
| Focal Length (mm) | 16 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 112,8 |
| Shooting range at MOD, vertical (mm) | 84,4 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,05 |
| Back Focus in Air (mm) | 13,1 |
| Filter Size (mm) | M27 x P0,5 |
| Size (mm) | Ø33 X 36,5 |
| Weight | 75 |
| Temperature Range | -10°C - +50°C |
| Series | JCM-WP |
| Application | Machine Vision |
