Kowa LM16JC5MC-WP | 2/3" 16mm 5MP Ultra Compact Waterproof Lens
Kowa LM16JC5MC-WP: The Ultimate Ruggedized Waterproof Lens for Industrial and Machine Vision Applications

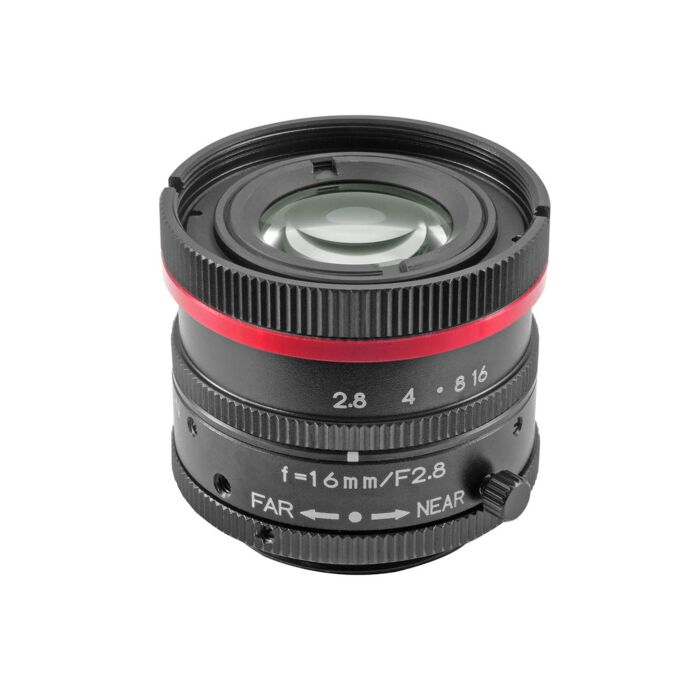

Aegis Electronic Group Inc. is proud to offer the Kowa LM16JC5MC-WP, an ultra-compact 16mm lens designed for the most demanding industrial and machine vision applications. This 2/3" 5-megapixel C-Mount lens is renowned for its robustness, lightweight construction, and exceptional durability. Engineered to withstand harsh environments, the LM16JC5MC-WP boasts an IP67 waterproof rating and a unique mechanical design that ensures high resistance to vibration and shock.
This lens is ideal for use with sensors featuring a pixel size of 3.5μm or greater, including popular models like Sony’s IMX250, IMX252, IMX264, and IMX265. The manual iris control offers precise adjustment with click stops at F2.8, F4, F5.6, F8, and F16, making it versatile for various lighting conditions. Its small size and light weight make it one of the industry’s most compact and portable 5-megapixel lenses, without compromising on performance.
The Kowa LM16JC5MC-WP is perfectly suited for applications requiring high resolution and reliable performance in challenging conditions. From factory automation to outdoor surveillance, this lens delivers unparalleled image quality and dependability.
Features:
- 16mm fixed focal length
- 2/3" image size
- 5-megapixel resolution
- Manual iris control (F2.8 - F16)
- IP67 waterproof rating
- Vibration and shock resistant
- Lightweight and compact design
- Suitable for Sony IMX250, IMX252, IMX264 and IMX265 and many other sensors
Applications:
- Factory automation
- Outdoor surveillance
- Robotics
- Machine vision inspection
- Industrial imaging
- Environmental monitoring
- Security systems
| Focal Length (mm) | 16 |
| F-Number | F=2.8-16 |
| Picture Size | 6.6 x 8.8mm / 5.4 x 7.2mm / 4.8 x 6.4mm |
| Angle Of View | VER. ANGLE: 23.4° / 19.2° / 17.2° HOR. ANGLE: 30.9° / 25.5° / 22.7° DIA. ANGLE: 38.2° / 31.6° / 28.2° |
| Distortion (TV) | -0.09% / -0.10% / -0.10% |
| Field Of View | VERTICAL: 88mm / 72mm / 64mm HORIZONTAL: 117mm / 96mm / 85mm DIAMETER: 147mm / 120mm / 106mm |
| Minimum Focus Distance | 0.2m |
| Flange Back | 17.526mm in air |
| Back Focus | 14.7mm in air |
| Filter Screw Size | M30.5x0.5 |
| Front/Rear Effective Diameter | FRONT Ø16.3mm REAR Ø13.9mm |
| Mount | C-Mount |
| Exit Pupil | -48.9mm |
| Temperature Range | -10°C - +50°C |
| Storage Temperature Range | -20°C - +60°C |
| Resolution Center/Corner | CENTER 160lp/mm CORNER 100lp/mm |
| Weight | 50g |
