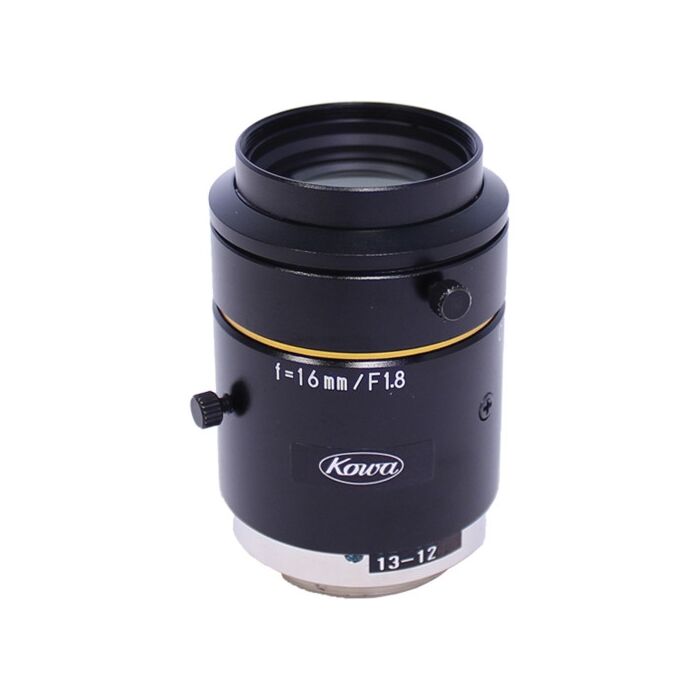

Kowa LM16JC3M2 | 2/3" Format 16mm Megapixel Lens (Discontinued)
SKU
LM16JC3M2
Quick Overview
*Product is Discontinued, Call For Replacement Options
2/3", 16mm, Megapixel Lens.
Features:
| Focal Length (mm) | 16 mm |
| Image Size (mm) | 8.8x6.6 (Φ11) |
| Iris Range | F 1.4 - 16 |
| Focusing range (m) | 0.2 - ∞ |
| Iris | Manual |
| Focus | Manual |
| Shooting range at MOD (mm) | 112.8 x 84.4 |
| Angle of View (Degrees) | 2/3": 30.0 x 22.7 1/1.8": 24.7 x 18.6 1/2": 21.8 x 16.4 |
| TV Distortion (%) | -0.05 |
| Back Focus in Air (mm) | 13.1 |
| Mount | C-Mount |
| Filter Thread (mm) | M27xP0.5 |
| Size (mm) | Φ33.5 x 36.5 |
| Weight | 85 |
| Temperature Range | -10°C - +50°C |
