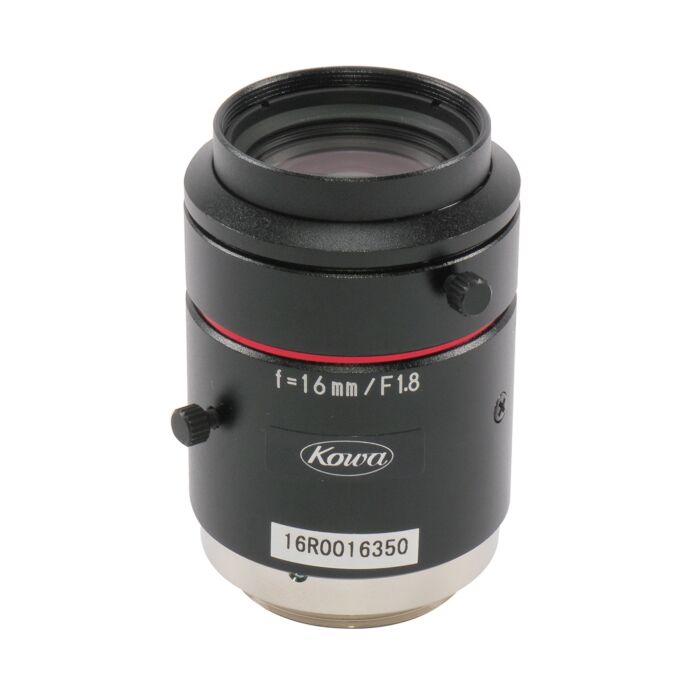

Kowa LM16JC10M | 2/3" 16mm 10MP C-Mount Lens
High-Precision Kowa LM16JC10M Lens for Industrial and Machine Vision Applications
The Kowa LM16JC10M 2/3" 16mm 10MP C-Mount Lens is an outstanding choice for industrial and machine vision applications requiring exceptional image quality and precision. Designed for high-resolution sensors such as Sony IMX250, IMX264, and Aptina MT9D131, this lens delivers superior optical performance with a 200 lp/mm resolution at the center and 160 lp/mm at the edges, ensuring sharp and accurate imaging across the entire frame.
The lens features a floating mechanism, which minimizes optical aberrations, enhancing image clarity and consistency. Its broadband coating supports transmission from the visible to the near-infrared spectrum (400nm–1000nm), making it versatile for environments with varying lighting conditions. This lens is ideal for industries such as broadcasting, robotics, inspection systems, and surveillance, where precise imaging is crucial.
The manual focus and aperture controls offer flexibility in different working environments, and its compact, durable design withstands temperatures from -10°C to +50°C, making it suitable for challenging industrial settings. With a focal length of 16mm and support for pixel sizes as small as 2.5μm, the Kowa LM16JC10M is a reliable tool for achieving high-quality results in demanding machine vision tasks.
Features:
- 16mm focal length for 2/3" sensors
- 10 Megapixel resolution
- Floating mechanism to minimize aberrations
- Manual focus and aperture control
- Broadband coating (400nm–1000nm) for VIS to NIR transmission
- Compatible with Sony IMX250, IMX264, Aptina sensors
- Durable design with temperature range: -10°C to +50°C
Applications:
- Automated inspection systems
- Quality control in manufacturing
- Robotics and automation
- Broadcasting and live video production
- Surveillance and security systems
- Medical imaging solutions
| Aperture (F-stop) | 1,8 - 16 |
| Aperture (control) | Manual |
| Application field | Broadcast, Machine Vision |
| Back focus in air (mm) | 14,6 |
| Control (focus) | Manual |
| Field of view at minimum working distance, horizontal (mm) | 61,1 |
| Field of view at minimum working distance, vertical (mm) | 45,7 |
| Filter size (mm) | M25,5 x P0,5 |
| Focal length (mm) | 16 |
| Focus range (m) | 0,1 - ∞ |
| Mount | C-mount |
| Pixel size (µm) | 2,5 |
| Resolution, centre (lp/mm) | 200 |
| Resolution, margin (lp/mm) | 160 |
| Sensor size | 2/3" |
| Series | JC10M |
| Size (mm) | Ø33 x 47,5 |
| TV distortion (%) | -0,2 |
| Temperature range (℃) | -10°C - +50°C |
| Type of lens | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (400nm – 1000nm), Peak Coating (400nm – 1000nm) |
| Weight (g) | 90 |
