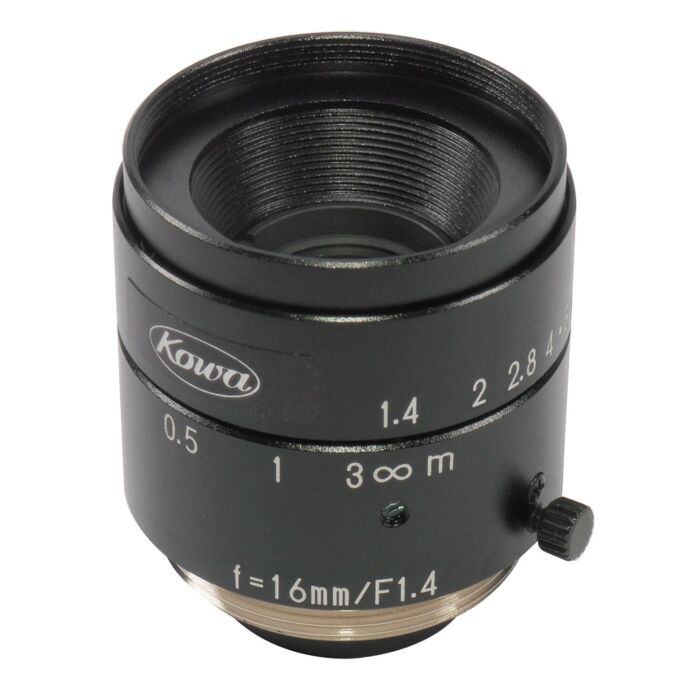

Kowa LM16JC | 2/3" 16mm MP C-Mount Lens

Unlock Superior Imaging with the Kowa LM16JC 16mm MP C-Mount Lens

The Kowa LM16JC 2/3" 16mm MP C-Mount Lens, available at Aegis Electronic Group Inc., is a high-performance lens designed to meet the demanding needs of industrial and machine vision applications. This fixed focal lens boasts a focal length of 16mm, making it ideal for a variety of imaging requirements. With compatibility for sensors with a pixel size from 5.0μm, such as e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001, it ensures versatile usage across different platforms.

Featuring manual iris and focus control, the Kowa LM16JC offers precise adjustments to capture sharp and clear images. Its VIS wavelength range (380nm - 780nm) enhances image clarity and color accuracy, making it suitable for various lighting conditions. The lens delivers exceptional resolution, with 100 lp/mm at the center and 60 lp/mm at the corners, ensuring detailed image capture.

Designed to withstand industrial environments, the lens operates efficiently within a temperature range of -10°C to +50°C. Its compact size (Ø30 x 28mm) and lightweight design (55g) make it easy to integrate into existing systems. The Kowa LM16JC is perfect for applications such as automated inspection, quality control, and robotic vision systems, providing reliable and high-quality imaging solutions.

Features:

• 2/3" Megapixel C-mount industrial lens
• 16mm focal length
• Compatible with e2v EV76C560, CMOSIS CMV2000, and Aptina MT9M001 sensors
• Manual iris and focus control
• VIS wavelength range (380nm - 780nm)
• High-resolution: 100 lp/mm (center), 60 lp/mm (corner)
• Compact size: Ø30 x 28mm
• Lightweight: 55g
• Temperature range: -10°C to +50°C

Applications:

• Automated inspection systems
• Quality control processes
• Robotic vision systems
• Precision measurement tools
• Assembly line monitoring
• Surface defect detection
• Barcode and OCR reading systems
• Medical imaging equipment
