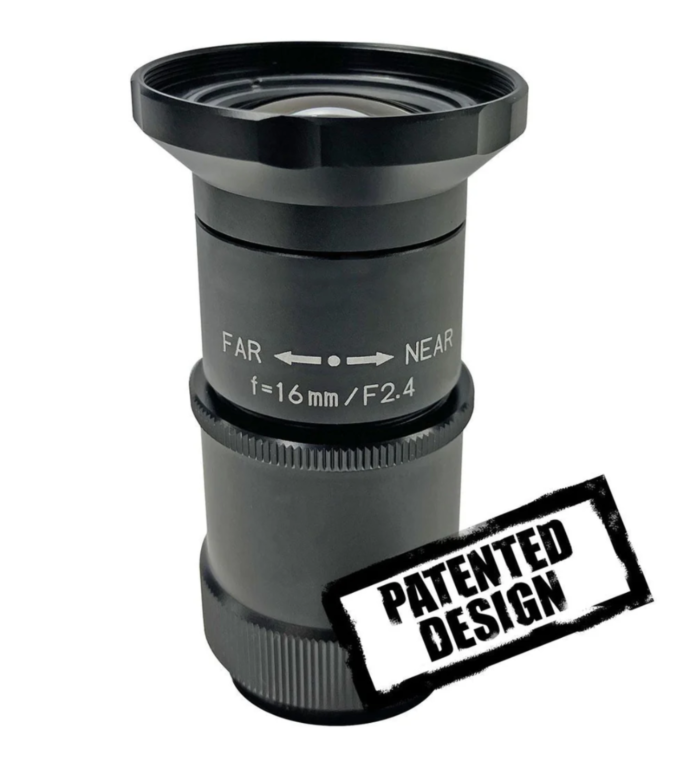

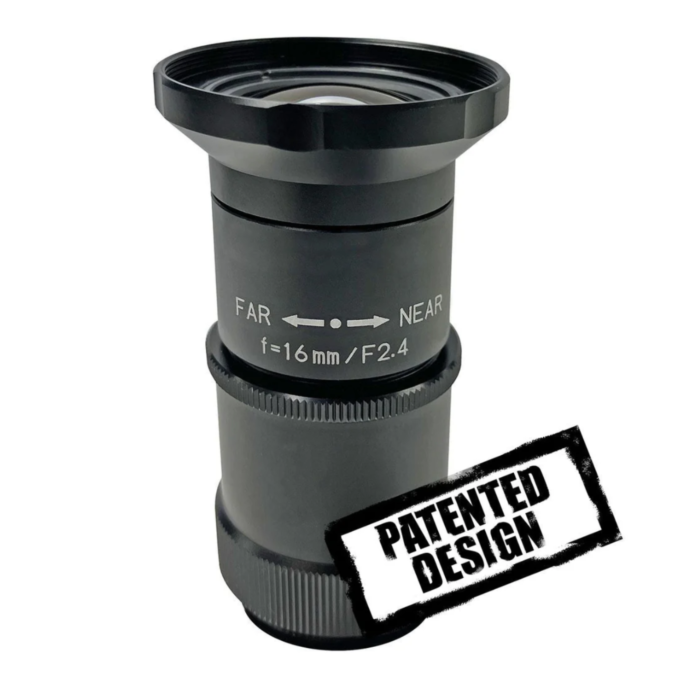

Kowa LM16EC-IR | 1.2" 16mm IR-Corrected Fixed Lens, 24MP, C-Mount, 2.5µm Pixel, Visible to NIR (400–1000nm)

The Kowa LM16EC-IR is a high-resolution 16mm fixed focal length lens optimized for large-format sensors up to 1.2" (19.2mm diameter) and 24MP resolution. Designed for precision imaging systems, this C-Mount lens supports pixel sizes down to 2.5µm and achieves a center resolution of 200 lp/mm, ensuring sharp detail in demanding machine vision, geo-mapping, and ITS (Intelligent Traffic Systems) applications. It offers consistent performance across a wide temperature range (-10°C to +50°C), with minimal distortion (-0.60%) and reliable manual focus operation from 0.5 meters to infinity.

With IR correction from 400nm to 1,000nm, the LM16EC-IR delivers high-contrast images in both visible and NIR spectrums, making it ideal for day/night surveillance and license plate recognition. Interchangeable aperture plates allow for fixed aperture control (f/2.4 to f/8), providing flexibility in depth-of-field and light conditions. The lens is compact (Ø36 x 64.3mm), lightweight (95g), and built for rugged environments, with high transmission optics and a 19.57mm back focus distance for seamless integration into high-performance vision systems.

Features:

• 16mm fixed focal length
• Supports 1.2" sensors (19.2mm dia.)
• 24MP resolution with 2.5µm pixel support
• High resolution: 200 lp/mm center, 125 lp/mm edge
• IR corrected for visible to NIR (400nm–1,000nm)
• Manual focus with 0.5m – ∞ focus range
• Fixed aperture control: f/2.4, f/2.8, f/4, f/5.6, f/8
• Compact and lightweight: Ø36 x 64.3mm, 95g
• -10°C to +50°C operating range
• Low distortion (-0.60%)
• C-Mount design, 19.57mm back focus

Applications:

• Intelligent Traffic Systems (ITS)
• License plate recognition (LPR/ANPR)
• Machine vision inspection
• Night and day surveillance systems
• Mapping, GIS, and photogrammetry
• Long-range industrial imaging
• Scientific and lab imaging
