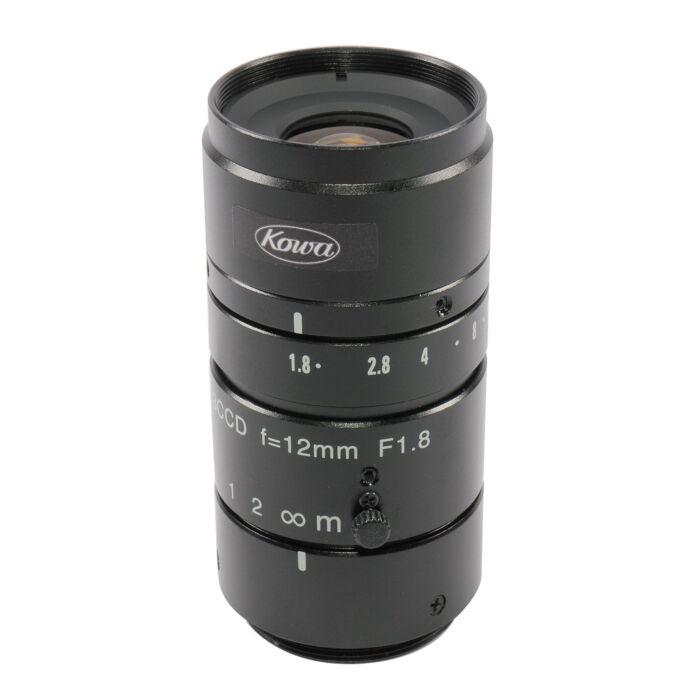

Kowa LM12NC3 | 1/2" 12mm 3CCD Megapixel Lens

egis Electronic Group Inc. proudly presents the Kowa LM12NC3 1/2" 12mm 3CCD Megapixel Lens, a top-tier solution for industrial and machine vision applications. Engineered for precision, this lens boasts a 12mm fixed focal length and a high-resolution capability of 120 lp/mm at the center and 100 lp/mm at the corners. Its metal mount and housing ensure durability and robustness, making it ideal for demanding environments.

The lens features manual iris and focus controls, allowing for fine-tuned adjustments and flexibility. Locking screws for iris and focus ensure settings remain stable during operation, providing consistent performance. The lens operates within a wavelength range of 380nm to 780nm (VIS), making it versatile for various lighting conditions.

With a compact size of Ø30 x 58.5 mm and a weight of just 90 grams, the Kowa LM12NC3 is easy to integrate into existing systems. Its wide temperature range of -10°C to +50°C allows it to perform reliably in diverse conditions.

This lens is perfect for broadcast, machine vision, and other industrial applications requiring high precision and reliability. Whether you're working in quality control, robotics, or automated inspection, the Kowa LM12NC3 delivers unmatched performance and clarity.

Features:

• 12mm fixed focal length
• High resolution: 120 lp/mm (center), 100 lp/mm (corner)
• Manual iris and focus control
• Locking screws for stability
• Durable metal mount and housing
• Operates in -10°C to +50°C temperature range
• Compact and lightweight design

Applications:

• Quality control
• Robotics
• Automated inspection
• Broadcast applications
• Precision measurement
• Optical sorting systems
• Industrial automation
