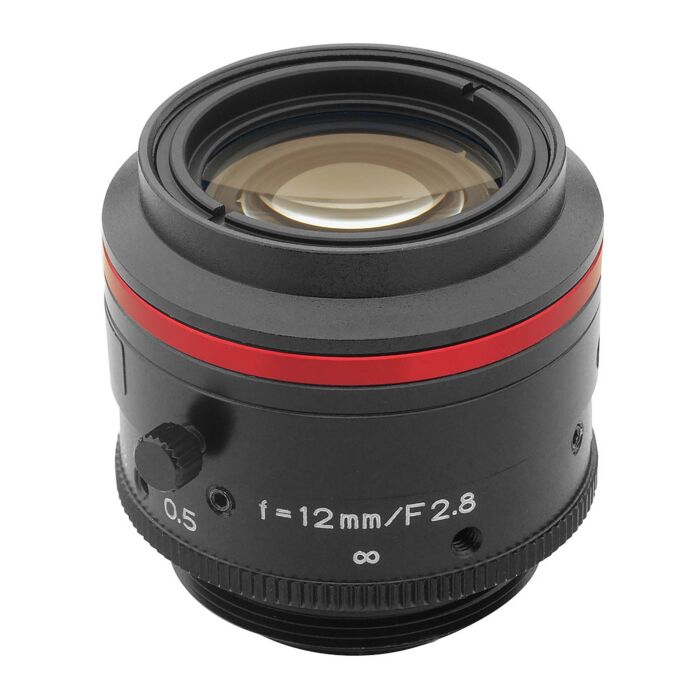

Kowa LM12JC5MC | 2/3" 12mm 5MP Ultra Compact Lens
Exceptional Clarity with Kowa LM12JC5MC 12mm 5MP Ultra Compact Lens
Aegis Electronic Group Inc. proudly offers the Kowa LM12JC5MC 2/3" 12mm 5MP Ultra Compact Lens, a standout in the realm of machine vision and industrial applications. Renowned for its high resolution and compact design, this lens is tailored for sensors with a pixel size as small as 3.5μm, making it ideal for use with Sony IMX250, IMX252, IMX264, IMX265, and many more sensors. The LM12JC5MC is celebrated as the smallest 5-megapixel lens in its class, ensuring unparalleled performance in constrained spaces.
Key features include a manual iris control with an iris range of F2.8 to F16, and a versatile focusing range from 0.2 meters to infinity, providing exceptional clarity and control in various settings. The lens supports a C-mount and operates efficiently across a wavelength range of 380nm to 780nm (VIS). Its robust construction, with a size of Ø32 x 26.8 mm and a weight of just 55g, ensures durability and ease of integration.
This lens is an excellent choice for a variety of applications, including machine vision systems, quality control inspections, and automation processes, delivering high-resolution imagery that enhances precision and reliability in industrial environments.
Features:
- Focal length: 12mm
- Sensor size: 2/3"
- Pixel size: 3.45µm
- C-mount
- Manual iris control (F2.8 - F16)
- VIS wavelength range (380nm - 780nm)
- Focus range: 0.2m to infinity
- High resolution: 160 lp/mm center, 100 lp/mm corner
- Compact size: Ø32 x 26.8 mm
- Lightweight: 55g
Applications:
- Quality control inspections
- Automated assembly line monitoring
- Robotics vision systems
- Precision measurement tools
- Surface and defect inspection
- Barcode and QR code scanning
- High-speed sorting systems
| Focal Length (mm) | 12 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 3.45 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 2.8 - 16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing Range (m) | 0.2 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 159 |
| Shooting range at MOD, vertical (mm) | 118 |
| Resolution, Center (lp/mm) | 160 |
| Resolution, Corner (lp/mm) | 100 |
| Megapixel | 5 |
| Distortion (TV) (%) | -0,43 |
| Back focus in air (mm) | 12.6 |
| Size (mm) | Ø32 X 26.8 |
| Weight (g) | 55 |
| Temperature Range (℃) | -10°C - +50°C |
| Series | JC5MC |
| Application | Machine Vision |
