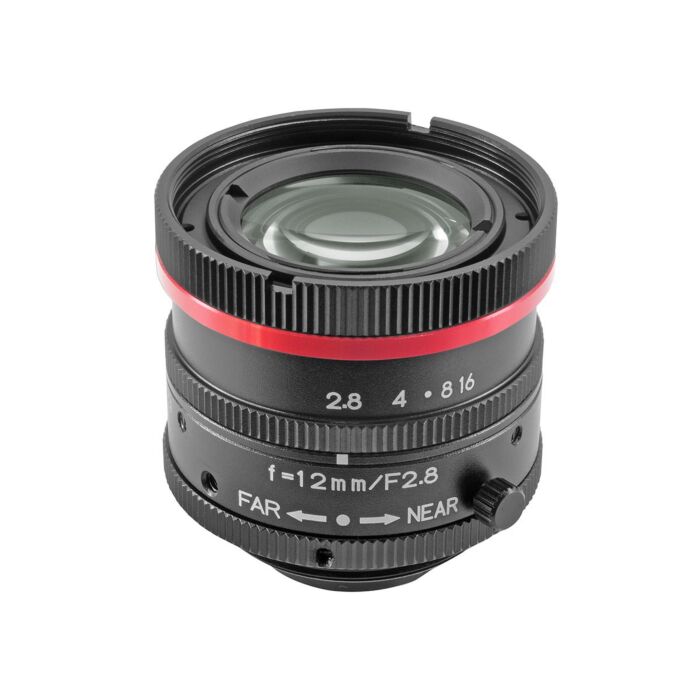

Kowa LM12JC5MC-WP 12mm Ultra Compact 2/3" Ruggedized Waterproof Lens
Discover the Versatility and Durability of the Kowa LM12JC5MC-WP Lens for Industrial and Machine Vision Applications
Aegis Electronic Group Inc. proudly presents the Kowa LM12JC5MC-WP, an ultra-compact, ruggedized, and waterproof lens designed for demanding industrial and machine vision applications. Kowa’s 2/3” 5 megapixel C-Mount JC5MC-WP lenses are renowned for their small size, lightweight construction, and exceptional durability. With a manual iris control ranging from F2.8 to F16, these lenses offer precise aperture adjustments, while the manual focus ensures sharp images. The Kowa LM12JC5MC-WP is engineered to withstand harsh environments, featuring an IP67 waterproof rating and robust vibration resistance, making it perfect for outdoor and industrial settings.
Ideal for sensors with a pixel size of 3.5μm or greater, including Sony’s IMX250, IMX252, IMX264, and IMX265, this lens guarantees high-resolution imaging. Its unique mechanical design guards against strong vibrations and shocks, ensuring reliable performance in high-motion environments. The click-type iris mechanism allows for easy F-number adjustments, enhancing usability.
Whether used in factory automation, quality control, or surveillance, the Kowa LM12JC5MC-WP excels in delivering clear, high-quality images under challenging conditions. Elevate your imaging solutions with this versatile and durable lens from Aegis Electronic Group Inc.
Features:
- Ultra-compact and lightweight
- 2/3” 5 megapixel resolution
- Waterproof (IP67 rating)
- Robust vibration and shock resistance
- Manual iris control (F2.8 - F16)
- Manual focus control
- Suitable for sensors with 3.5μm pixel size or greater
- Compatible with Sony IMX sensors
- Click-type iris mechanism for easy adjustments
- Suitable for Sony IMX250, IMX252, IMX264 and IMX265 and many other sensors
Applications:
- Factory automation
- Quality control and inspection
- Surveillance and security
- Outdoor imaging
- High-motion environment imaging
- Precision manufacturing
- Robotics and automation systems
| Focal Length (mm) | 12 |
| F-Number | F=2.8-16 |
| Picture Size | 6.6 x 8.8mm / 5.4 x 7.2mm / 4.8 x 6.4mm |
| Angle Of View | VER. ANGLE: 31.2° / 25.6° / 22.8° HOR. ANGLE: 41.0° / 33.9° / 30.3° DIA. ANGLE: 50.2° / 41.9° / 37.5° |
| Distortion (TV) | -0.43% / -0.46% / -0.42% |
| Field Of View | VERTICAL: 118mm / 96mm / 86mm HORIZONTAL: 159mm / 129mm / 115mm DIAMETER: 200mm / 163mm / 144mm |
| Minimum Focus Distance | 0.2m |
| Flange Back | 17.526mm in air |
| Back Focus | 12.6mm in air |
| Filter Screw Size | M30.5x0.5 |
| Front/Rear Effective Diameter | FRONT Ø18.5mm REAR Ø13.5mm |
| Mount | C-Mount |
| Exit Pupil | -58.7mm |
| Temperature Range | -10°C - +50°C |
| Storage Temperature Range | -20°C - +60°C |
| Resolution Center/Corner | CENTER 160lp/mm CORNER 100lp/mm |
| Weight | 52g |
