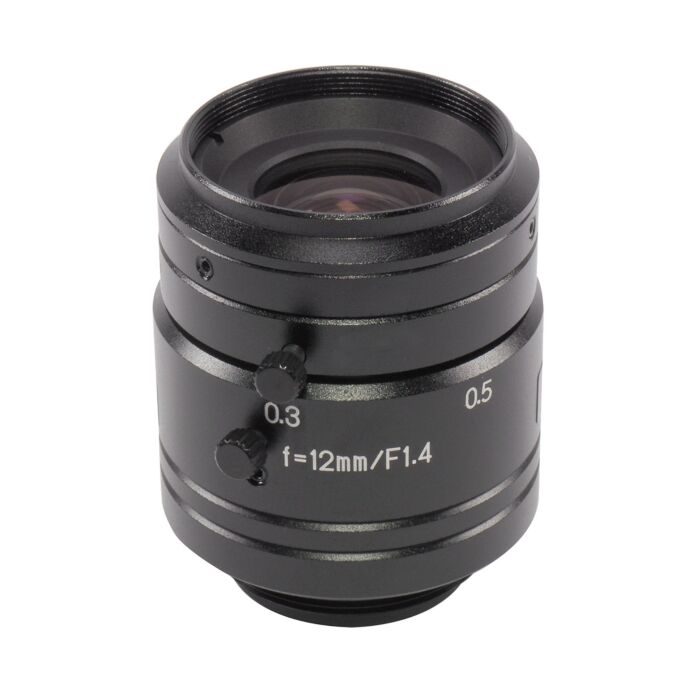

Kowa LM12JC1MS | 2/3" 12mm 2MP C-Mount Lens

High-Performance Kowa LM12JC1MS 12mm Lens for Industrial and Machine Vision Applications

The Kowa LM12JC1MS 2/3" 12mm 2MP C-mount lens is a powerful solution designed for industrial and machine vision applications. With its exceptional resolution and precise imaging capabilities, this compact lens delivers superior brightness, even in the corners, while maintaining low distortion. It supports high-quality image sensors such as the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, making it suitable for various industrial imaging needs.

The LM12JC1MS lens is specifically crafted for sensors with a pixel size as small as 4.5μm, ensuring sharp images in automated inspection, robotics, and other machine vision systems. It features a manual aperture and focus control, offering greater flexibility for users to fine-tune their setup. This lens provides a 12mm focal length, an aperture range of F1.4, and a field of view that guarantees a comprehensive perspective on critical tasks.

Built to withstand challenging environments, the Kowa LM12JC1MS operates reliably between -10°C and +50°C, making it perfect for factory automation, quality control, and industrial monitoring systems. Its low TV distortion and high center resolution ensure consistent accuracy, enabling optimal performance for machine vision systems that demand precision.

Features:

• 2/3" 12mm focal length C-mount lens
• 2MP resolution with high center resolution (120 lp/mm)
• Supports sensors with pixel sizes down to 4.5μm
• Manual aperture and focus control for customization
• Low TV distortion (-0.07%) for precise imaging
• Compact and lightweight design (85g)
• Peak coating wavelength range of 400nm – 1000nm

Applications:

• Automated inspection systems
• Factory automation and robotics
• Quality control imaging
• High-speed industrial cameras
• 2D and 3D imaging for object detection
• Industrial process monitoring
• High-resolution video surveillance
