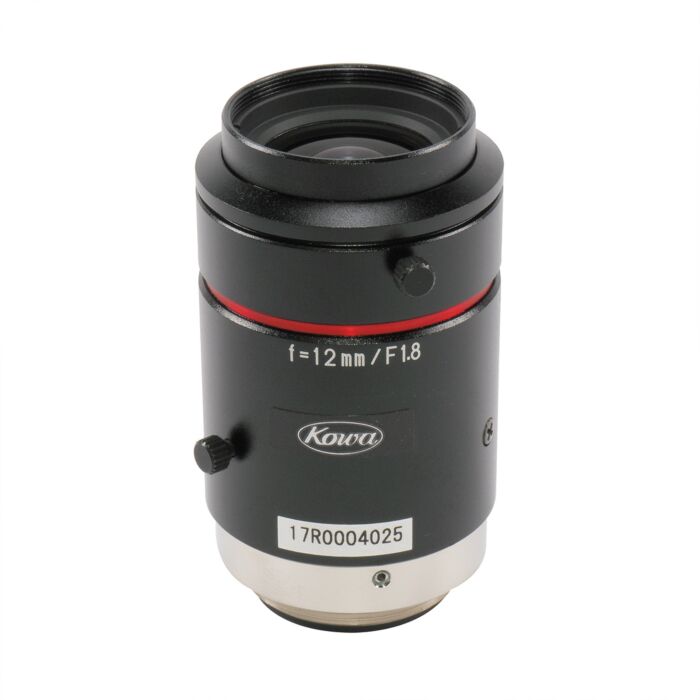

Kowa LM12JC10M | 2/3" 12mm 10MP C-Mount Lens
High-Performance Kowa LM12JC10M Lens for Industrial and Machine Vision Applications
The Kowa LM12JC10M 2/3" 12mm 10MP C-Mount Lens is an exceptional choice for industrial and machine vision applications. This fixed focal lens is specifically designed for sensors with a pixel size of 2.5μm or larger, making it suitable for high-resolution imaging tasks. It is perfectly compatible with popular sensors such as the Sony IMX250, Sony IMX264, and Aptina MT9D131, among many others.
With a focal length of 12mm and a manual iris control with a range of f/1.8 to f/11, this lens offers precision and flexibility. The lens covers a broad wavelength range from 380nm to 1000nm, thanks to its Broad Band Coating, ensuring clear and sharp images in various lighting conditions. The high resolution at the center (200 lp/mm) and corners (160 lp/mm) guarantees detailed and accurate image capture, essential for demanding industrial environments.
Ideal for machine vision systems, broadcast, and other industrial applications, the Kowa LM12JC10M lens stands out for its robust build and reliable performance. Its manual focus control and extensive focusing range from 0.1m to infinity provide versatility for diverse imaging needs. Additionally, its compact size and lightweight design make it easy to integrate into various setups.
Features:
- 2/3" 12mm 10MP C-Mount lens
- Compatible with Sony IMX250, IMX264, and Aptina MT9D131 sensors
- Manual iris control (f/1.8 - f/11)
- Broad Band Coating (380nm - 1000nm)
- High resolution: 200 lp/mm center, 160 lp/mm corners
- Manual focus control with a range from 0.1m to infinity
- Compact and lightweight design
Applications:
- Machine vision systems
- Industrial inspection
- Quality control
- Automation systems
- Broadcast applications
- Medical imaging
- Scientific research
- Security and surveillance systems
| Focal Length (mm) | 12 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 2,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,8 - 11 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm), Broad Band Coating (380nm - 1000nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 80,7 |
| Shooting range at MOD, vertical (mm) | 60,2 |
| Resolution (Center, Corner) | 200lp/mm,160lp/mm |
| Megapixel | 10 |
| TV Distortion (%) | -0,12 |
| Back Focus in Air (mm) | 13,9 |
| Filter Size (mm) | M25,5 x P0,5 |
| Size (mm) | Ø33 X 53,5 |
| Weight | 105 |
| Temperature Range | -10°C - +50°C |
| Series | JC10M |
| Application | Machine Vision, Broadcast |
