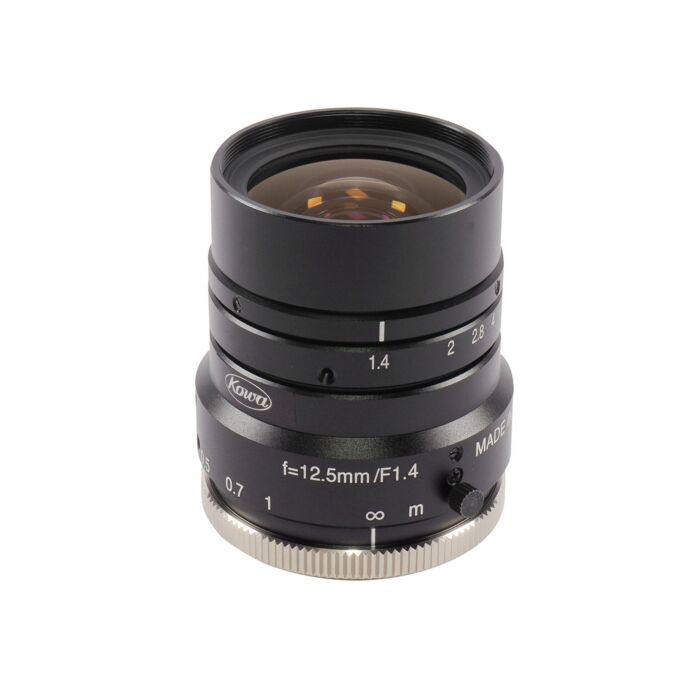

Kowa LM12HC | 1" 12mm 5MP C-Mount Lens
Enhance Your Imaging Precision with the Kowa LM12HC 12mm 5MP C-Mount Lens
The Kowa LM12HC 12mm 5MP C-Mount Lens, available at Aegis Electronic Group Inc., is a high-performance lens specifically designed for demanding industrial and machine vision applications. With a focal length of 12.5mm and compatibility with 1" sensors with a pixel size of 5.0μm or more, this lens delivers outstanding clarity and precision. It is particularly well-suited for use with Sony IMX174, CMOSIS CMV4000, and Sony IMX249 sensors, making it a versatile choice for various imaging needs.
The manual iris control allows for fine-tuning of the aperture, providing a range from F1.4 to F16. This feature, combined with the lens's high resolution (120 lp/mm at the center and 80 lp/mm at the corners), ensures sharp, high-quality images even in challenging conditions. The lens covers a wavelength range from 380nm to 780nm, making it suitable for visible light applications.
Industries that benefit from this lens include broadcast, traffic control, and other industrial sectors requiring precise image capture. The robust construction and wide operating temperature range (-10°C to +50°C) ensure reliable performance in diverse environments. Invest in the Kowa LM12HC lens to enhance your imaging capabilities and achieve superior results in your critical applications.
| Focal Length (mm) | 12.5 mm |
| Sensor Size | 1" |
| Pixel Size (µm) | 5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | F1.4 / F4 / F8 / F16 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,3 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 330,6 |
| Shooting range at MOD, vertical (mm) | 243,5 |
| Resolution (Center, Corner) | 120lp/mm,80lp/mm |
| Megapixel | 5 |
| TV Distortion (%) | -1,58 |
| Back Focus in Air (mm) | 12,6 |
| Filter Size (mm) | M35.5 x P0,5 |
| Size (mm) | Ø43 X 52 |
| Weight | 160 |
| Temperature Range | -10°C - +50°C |
| Series | HC |
| Application | Broadcast, Machine Vision, ITS/Traffic Control |
