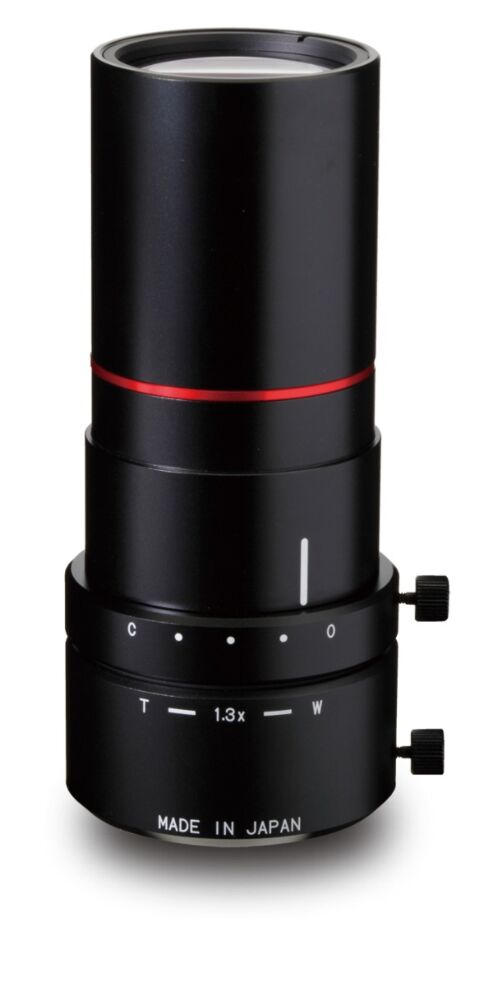

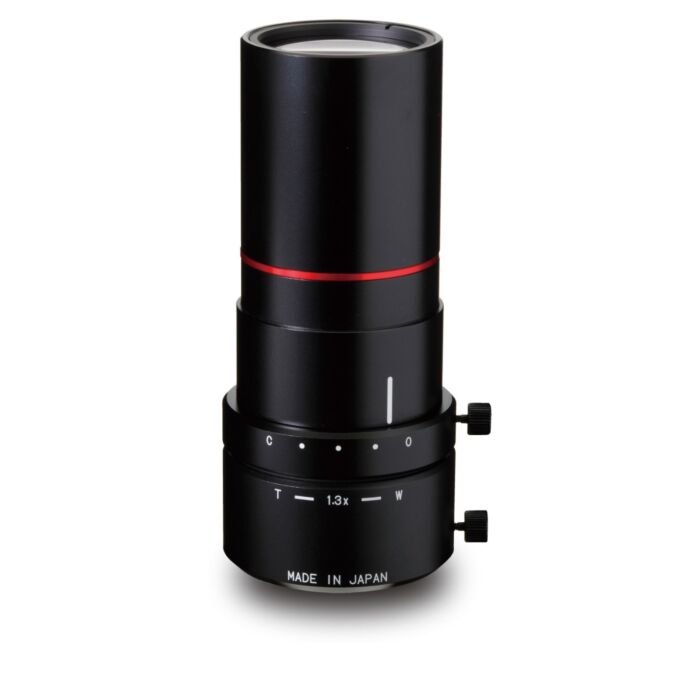

Kowa LM1122TC 2/3" 1.15-1.47x Telecentric Macro Zoom Lens
2/3", 1.15-1.47x, C-Mount, 5 Megapixel Plus, Telecentric Macro Zoom
SKU
LM1122TC
In a telecentric optical system, there is no change in magnification when focusing, and magnification is constant over working distances. Thus movement of an object does not change magnification. Therefore, it is suitable for measuring objects with high accuracy.
Features:
| Magnification | 1.3x | 1.47x | 1.15x |
| Objective N.A. | 0.060 | 0.077 | 0.047 |
| Element | 7 GROUPS 10 ELEMENTS | ||
| Image Size | 6.6x8.8mm | 6.6x8.8mm | 6.6x8.8mm |
| Shooting Range | VERTICAL: 5.0mm HORIZONTAL: 6.6mm DIAMETER: 8.3mm |
VERTICAL: 4.5mm HORIZONTAL: 6.0mm DIAMETER: 7.5mm |
VERTICAL: 5.7mm HORIZONTAL: 7.6mm DIAMETER: 9.6mm |
| Distortion (TV) | -0.001% | 0.011% | -0.015% |
| Working Distance | 111.6mm | 111.6mm | 111.6mm |
| Flange Back | 17.526mm in air | ||
| Front/Rear Effective Dia. | FRONT: ⌀32.3mm REAR:⌀8.8mm | ||
| Mount | C-Mount | ||
| Exit Pupil | -42.9mm | -48.5mm | -36.3mm |
| Temperature Range | -10 - +50°C | ||
| Storage Temperature Range | -20 - +60°C | ||
| Telecentricity | 99% | ||
| Weight | 330g | ||
