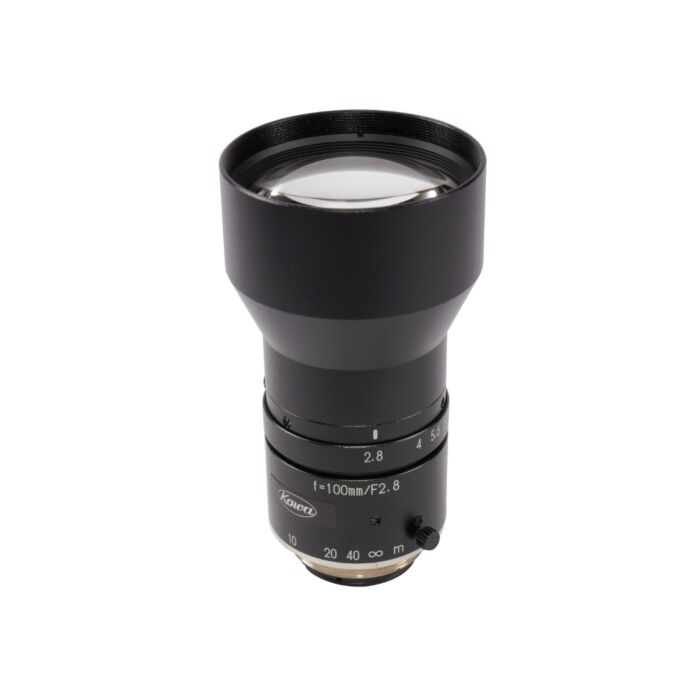

Kowa LM100JC | 2/3" 100mm Fixed Focal Manual Iris Lens (Discontinued)
SKU
LM100JC
Quick Overview
*Product is discontinued, Replacement Option: LM100JC1MS
2/3", 100mm, Fixed Focal Manual Iris.
These lenses are ideal for many machine vision system applications. The lenses have outstanding resolution and offer focal lengths from 6mm to 100mm to fit a wide range of applications.
| Lens Type | Fixed Focal Length Lens |
| Image Size | 2/3" (8.8 x 6.6 x 11mm) |
| Focal Length | 100mm |
| Iris Range (F-Stop) | F2.8 - F32 |
| Minimum Focus Distance | 2.0m |
| Mount | C-Mount |
| Angle of View 2/3" (Hor. x Ver. x Dia.) | 5.0 x 3.8 x 6.3° |
| Angle of View 1/1.8" (Hor. x Ver. x Dia.) | 4.1 x 3.1 x 5.2° |
| Angle of View 1/2" (Hor. x Ver. x Dia.) | 3.7 x 2.8 x 4.6° |
| Field of View at M.O.D. 2/3" (Hor. x Ver. x Dia.) | 168.8 x 126.6 x 211.2mm |
| Field of View at M.O.D. 1/1.8" (Hor. x Ver. x Dia.) | 138.1 x 103.6 x 172.7mm |
| Field of View at M.O.D. 1/2" (Hor. x Ver. x Dia.) | 122.8 x 92.1 x 153.5mm |
| TV Distortion | -0.05% |
| Flange Back | 17.526mm in air |
| Back Focus | 19.0mm in air |
| Filter Thread Size | M40.5 x P0.5 |
| Front / Rear Effective Diameter | Front Φ35.2mm / Rear Φ11.2mm |
| Exit Pupil Location | -31.0mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution: Center / Corner | Center 100lp/mm / Corner 40lp/mm |
| Weight | 140g |
