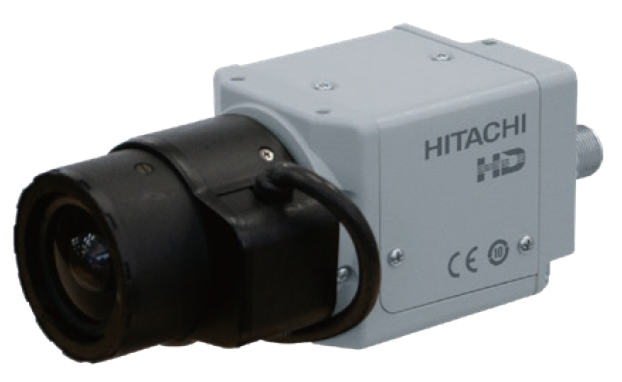

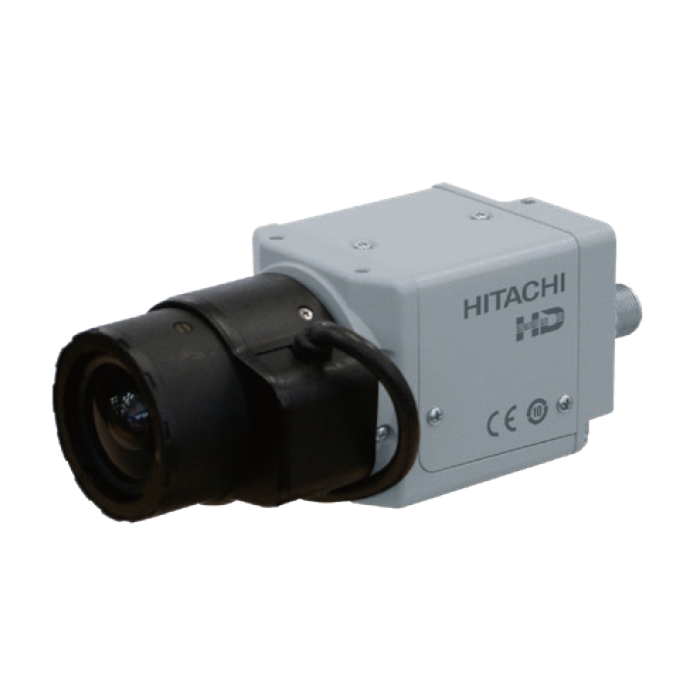

Kokusai Denki America KP-HD20AW 3G/HD-SDI Full HD Compact Color Camera

Name: Kokusai Denki America KP-HD20AW 3G/HD-SDI Full HD Compact Color Camera
SKU: KP-HD20AW

SKU

KP-HD20AW

Please call for pricing

Quick Overview

Elevate your industrial vision with Kokusai Denki America KP-HD20AW Compact HDTV Color Camera. Order now for HD precision, multi-format outputs, and long-distance transmission.

Overview

The Kokusai Denki KP-HD20AW 3G/HD-SDI HDTV Compact Color Camera revolutionizes industrial imaging, replacing outdated standard definition models with its cutting-edge features. Boasting Kokusai Denki's renowned broadcasting camera technology, it delivers stunning full HD 2MPix resolution, ensuring unparalleled clarity and precision in industrial and machine vision applications.

Its compact body, measuring a mere 44mm (w) × 44mm (H) × 57.5mm (D) and weighing only 150g, makes it ideal for installations in narrow or limited spaces, providing a solution where traditional cameras cannot fit. Despite its small size, it offers multi-format outputs, including SDI: 1080p 59.94/50, 1080i 59.94/50, 1080p 29.97/25, and VBS output NTSC/PAL, ensuring compatibility with various systems.

Additionally, the KPHD20AW supports long-distance transmission of up to 300 meters when combined with the separately sold MULTI-UNIT, making it suitable for remote monitoring applications. Its ability to transmit DC power source through a single coaxial cable simplifies installation and reduces clutter, further enhancing its versatility.

With its advanced features and compact design, the Kokusai Denki KPHD20AW sets a new standard for industrial cameras, empowering businesses to achieve unparalleled precision and efficiency in their operations.

The new Kokusai Denki KP-HD20AW is capable of replacing both the KP20B and KPD20A which are Standard Definition.

Features:

Full HD 2MPix resolution
Multi-format output compatibility
Long-distance transmission up to 300m
Compact design for narrow spaces
Broadcasting camera technology
Coaxial cable power transmission

Applications:

Industrial inspection
Quality control
Surveillance systems
Robotics
Remote monitoring
Microscopic Examination
Equipment Monitoring

Specifications

Imaging Method	HDTV(16:9) 1080 59.94p/50p
Imaging Sensor	1/2.8-inch CMOS(RGB Color Bayer)
Number Of Pixels	2M Pixels
Effective Pixels	1936(H) x 1100(V)
Video Signal Output	SDI out 0.8Vp-p/75Ω BNC 3G-SDI 1080p 59.94/50 HD-SDI 1080i 59.94/50, 1080p 29.97/25 HD-VLC 1080i 59.94/50, 1080p 29.97/25 VBS out 1.0Vp-p/ 75Ω BNC NTSC/ PAL * HD-VLC require a dedicated MULTI -UNIT MU-HD series -(sold separately). Dedicated MULTI -UNIT does not support 3G-SDI.
Mini. Subject Illumination	0.03lx (F1.2, AGC: 66dB, Gamma: High)
AGC	PRESET GAIN (0 to 66dB :1dB step setting available) AGC LIMIT (Max. Gain : 0 to 66dB :1dB step setting available)
Shutter Speed	1/30(1/25), 1/60(1/50), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/5,000, 1/10,000, 1/15,000(1/12,500), 1/37,500(1/31,250), 1/75,000(1/62,500), AES, AES[1/30(1/25)] * ( ) is for PAL setting. AES&LENS[1/1,000], AES&LENS[1/2,000], AES&LENS[1/5,000] VARIABLE 1/30.04~1/75,000 ( PAL:1/25.04~1/62,500 )
Light Intensity Control	AVERAGE/ PEAK: Selectable
White Balance Control	Auto/ Preset/ Manual
Remote Control	RS-232C
Lens Mount	CS/ C Mount (C Mount adapter: sold separately)
Dimensions	Approx. 44(W) × 44(H) × 57.5(D)mm (excluding lens, protrusions)
Mass	Approx. 150g±10% (excluding lens,)
Power Consumption	DC12V±10%/Power Supply superposition with the dedicated Multi-Unit (DC24V) approx. 5.16W
Operation Temp/ Humidity	Atmospheric Temperature: -10°C ~ +50°C Humidity: 30 ~ 80%RH :No Condensation

Downloads

Kokusai Denki America KP-HD20AW Spec Sheet
