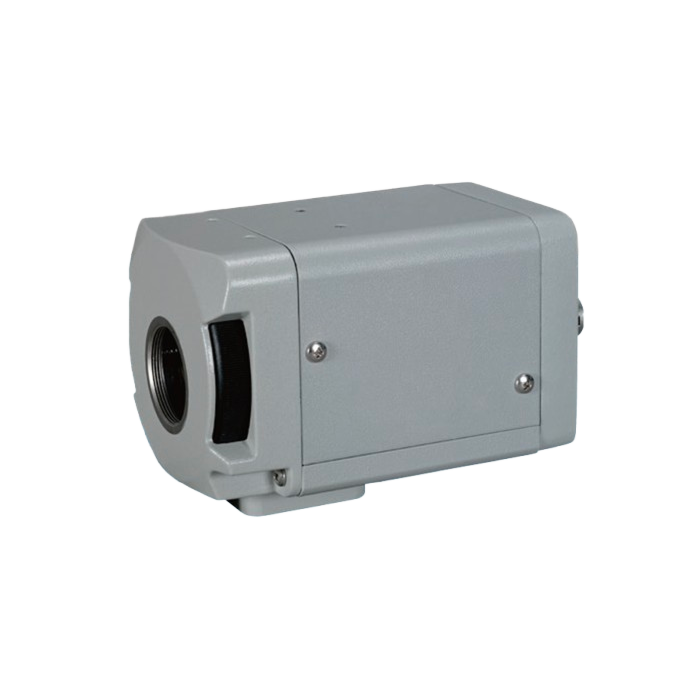

Kokusai Denki America KP-HD2005R-S5 Full HD HD-SDI Camera
The Kokusai Denki America KP-HD2005R-S5 is a cutting-edge Full HD camera designed for superior imaging performance in challenging environments. Featuring a 1/1.9-inch RGB Bayer CMOS global shutter sensor, it eliminates distortion from motion, ensuring precise capture of dynamic scenes. With an extraordinary minimum illumination of 0.0001 lux (B&W), this camera excels in ultra-low-light conditions, making it ideal for surveillance, industrial, and scientific applications.
Optimized for long-range imaging, the KP-HD2005R-S5 integrates seamlessly with Kokusai Denki’s VG-2000PCB for enhanced stabilization and 60x optical zoom with a 2000mm lens, achieving unprecedented clarity even at distances up to 1/2 mile. Its IR-cut filter option supports day-to-night transitions, while black-and-white imaging penetrates smoke and fog in real-time.
This camera sets the standard for technical precision and operational adaptability, meeting the needs of professionals who demand the highest imaging quality.
Features:
- Global Shutter CMOS: Distortion-free imaging for fast-moving objects.
- Ultra-Low Light Sensitivity: Operates at 0.0001 lux (B&W), 0.009 lux (Color).
- High Resolution: 2.38M effective pixels, >800 TV lines.
- Advanced Optics: C/CS mount compatibility, 4x digital zoom.
- Dual Outputs: HD-SDI and analog video (PAL/NTSC).
- Adaptive Defog & Haze Correction: Real-time clarity enhancement.
- Wide Dynamic Range: S/N ratio >60dB.
- Flexible Operation: AGC, electronic shutter (1/30 to 1/100000 sec), ICR day/night.
- Motion Stabilization: Compatible with VG-2000PCB for extreme zoom.
- Long-Range Imaging: Supports 60x optical zoom for 2000mm lenses.
Applications:
- Surveillance: Long-range, low-light, and foggy environments.
- Industrial: Monitoring high-speed machinery or low-light processes.
- Scientific Research: High-detail imaging in dynamic conditions.
- Aerospace: Motion-stabilized visuals under extreme conditions.
- Traffic Monitoring: Clarity in heat haze, smoke, or fog.
- Outdoor Security: Ultra-low-light performance and weather adaptability.
| Imaging Sensor | 1/1.9 CMOS (RGB Bayer color) |
| Total Pixels | 1952(H) X 1241(V) 2.4M pixels |
| Effective Pixels | 1937(H) X 1097(V) 2.38M pixels |
| Imaging System | Progressive 30 fps / 25 fps (P-type) |
| Sync System | Internal |
| Video Output | HD-SDI (SMPTE292M) & Analog VBS (selectable PAL or NTSC) |
| Video Format | HD-SDI: 1080/59.94i, 1080/29.97p, 1080/50i, 1080/25p |
| Minimum Illumination | Color : 0.009 lux (F1.2 AGC:75dB, Gamma: High, SEN UP OFF) B&W : 0.0005 lux (F1.2 AGC:75dB, Gamma: High, SEN UP OFF) *3200K Tungsten lamp used for testing |
| S/N Ratio | More than 60dB |
| Resolution | Horizontal resolution more than 800 lines TV lines |
| AGC | OFF / Auto (Max Gain 75dB, fog OFF, Max Gain 42dB, fog ON) |
| Electronic Shutter | OFF / AES / Manual (1/30 to 1/100000 sec) |
| Electronic Sensitivity (SEN UP) | OFF / Auto (Max 60 times) / Manual (2 to 30 times) |
| Fog Reduction | OFF / ON / Auto (1 to 128 levels) |
| Day & Night (W/B switching) | COLOR / B&W / Auto (ICR) |
| BLC | OFF / ON (photometry area with ROI capability) |
| White Balance | Auto : ATW Manual : Manual (2500K – 8000K) |
