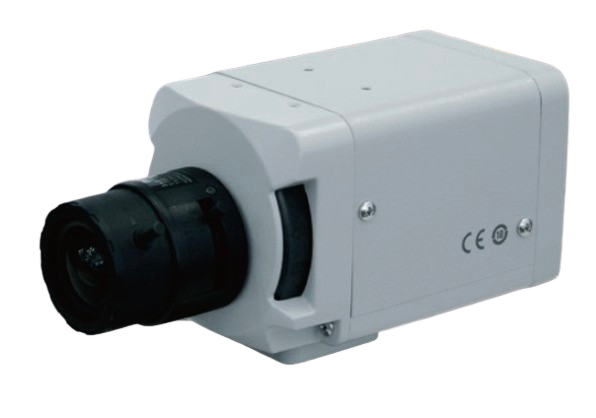

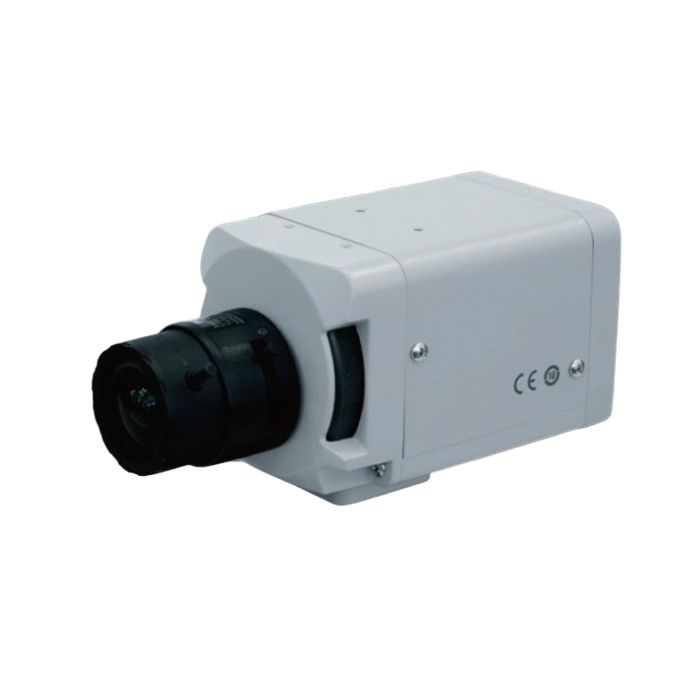

Kokusai Denki America KP-HD1005W Full HD HD-SDI Camera
The Kokusai Denki America KP-HD1005W is a cutting-edge high-definition camera designed for superior image capture in a wide range of environments. Utilizing a 1/2.8-type CMOS sensor, this camera delivers high sensitivity, producing clear images even in low-light conditions with a minimum illumination of just 0.015 lux in color and 0.001 lux in black and white. The full HD 1080p output (29.97p/25p) is ideal for applications demanding exceptional clarity, with horizontal resolution exceeding 800 TV lines and an S/N ratio of more than 50dB.
This camera features advanced functions such as Digital Noise Reduction, which minimizes noise generated by gain amplification during motion, ensuring clean and crisp video capture. The Wide Dynamic Range (WDR) function enables the camera to effectively capture high-contrast scenes with both dark and bright areas, ensuring no loss of detail. Additionally, the Defog function enhances visibility by adjusting images obscured by haze or fog, producing clearer, more defined visuals in challenging environmental conditions.
Key technical features include a selectable video output in both SDI and VBS formats, customizable electronic shutter speeds ranging from 1/30 to 1/37500 seconds, and precise white balance control for accurate color reproduction. The camera’s IR Cut Filter and Day & Night functionality ensure seamless operation in various lighting conditions, making the KPHD1005W a reliable solution for a broad spectrum of professional imaging applications.
Features:
- 1/2.8 CMOS Sensor – High sensitivity, low light performance
- Full HD 1080p – 29.97p/25p video output
- Wide Dynamic Range (WDR) – Captures both dark and bright areas
- Defog Function – Enhances clarity in foggy or hazy conditions
- Digital Noise Reduction – Reduces noise during motion
- SDI & VBS Outputs – Versatile video output options
- Adjustable Shutter Speed – 1/30 to 1/37500 seconds
- White Balance Control – Auto, One-Push, Manual modes
- Day & Night Function – IR Cut Filter, dummy glass switching
- Low Light Sensitivity – 0.015 lux (color), 0.001 lux (B/W)
Applications:
- Security Surveillance – High-quality monitoring in various conditions
- Broadcasting – Professional video capture with high resolution
- Traffic Monitoring – Clarity in dynamic, high-contrast scenes
- Industrial Inspection – Reliable imaging in low light and fog
- Automated Systems – Versatile for machine vision tasks
- Outdoor Imaging – Enhanced clarity in weather-challenged environments
| Imaging Method | HDTV(16:9) 1080 29.97p/25p |
| Imaging Device | 1/2.8 CMOS (RGB Bayer color) |
| Imaging Pixels | 1936(H) x 1120(V) |
| Effective Pixels | 1936(H) x 1100(V) |
| Synce System | Internal |
| Video SDI Output | SDI HD-SDI/ HD-VLC* 0.8Vp-p/75Ω BNC typeOutput format: 1080(1080 59.94/50i, 29.97/25p)* Dedicated multiunit MU-HD series (option) is necessary for HD-VLC mode. |
| Video VBS Output | Analog VBS (selectable PAL or NTSC) 1.0Vp-p/75Ω BNC type |
| Minimum Illumination | 0.015 lux (COLOR, F1.2 AGC:66dB, Gamma: High) 0.001lux (B&W, F1.2 AGC:66dB, Gamma: High) |
| S/N ratio | More than 50dB |
| Resolution | Horizontal resolution More than 800 TV line |
| AGC | PRESET GAIN (0 to 66dB, appox. 1dB step setting) AGC LIMIT (MAX GAIN 0 to 66dB, appox. 1dB step setting) |
| Electronic Shutter Speed | PRESET = 1/30(1/25), 1/60(1/50), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/15000, 1/37500(1/31250) seconds |
| Sensitivity Up | AUTO 2/ 4/ 6/ 8/ 10/ 12/ 16/ 32/ 60 times MANUAL 2/ 4/ 6/ 8/ 10/ 12/ 16/ 32/ 60 times |
| Haze Correction (DEFOG) | OFF/ AUTO/ AUTO-HIGH |
| Day & Night Function | IR Cut Filter/ dummy glass switching mechanism |
| White Balance Control | Auto / One Push / Manual: Normal (2500K–8000K), Special (2300K–10000K) |
