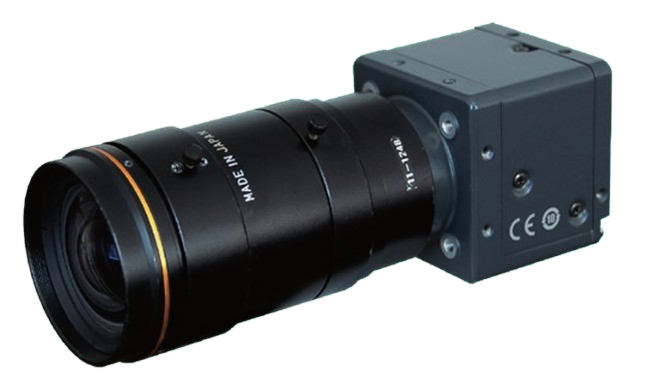

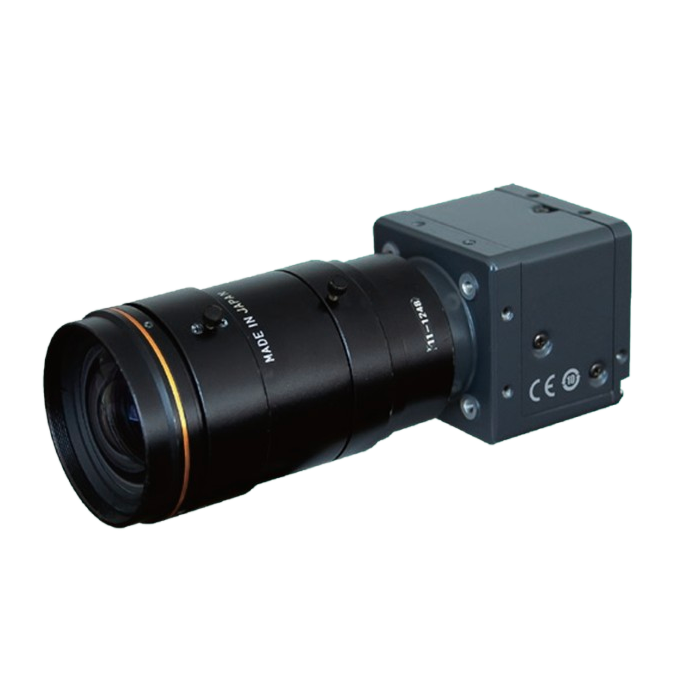

Kokusai Denki America KP-FMR530WCL Color Single High Resolution CMOS Sensor Camera Link Camera

The Kokusai Denki America KP-FMR530WCL is a high-performance 5-megapixel CMOS camera designed for demanding industrial, scientific, and machine vision applications. This model utilizes a 2/3-inch CMOS sensor, providing a resolution of 2448 (H) × 2048 (V) pixels and an impressive maximum frame rate of 163.4 frames per second (fps), ensuring rapid data capture with high clarity. The camera features a global shutter mechanism that eliminates distortion from fast-moving objects, ideal for high-speed applications where stable and distortion-free video signals are critical.

The KP-FMR530WCL offers a versatile Camera Link interface, supporting selectable frame rates through Camera Link output tap and frequency settings, allowing for optimized performance based on specific needs. It supports both mono (KP-FM530WCL) and color (KP-FMR530WCL) imaging models, with each variant delivering excellent image quality and high dynamic range.

With its compact design (44mm x 44mm x 41mm) and a low power consumption of 270mA, the KPFMR530WCL is suitable for integration in tight spaces. Additionally, the camera offers flexible power options, as DC power can be supplied through the Camera Link cable or via the DCIN/SYNC port, enhancing system configuration versatility. Trigger, partial scan, and electronic shutter features further enhance the camera’s usability in complex imaging tasks.

Features:

• 5MP Resolution (2448x2048)
• Global Shutter
• 163.4fps Max Frame Rate
• 2/3-inch CMOS Sensor
• Camera Link Interface
• Selectable Frame Rates
• Trigger & Electronic Shutter
• DC Power via Camera Link or DCIN/SYNC

Applications:

• High-speed Imaging
• Machine Vision
• Industrial Inspection
• Scientific Research
• Robotics
• Quality Control
