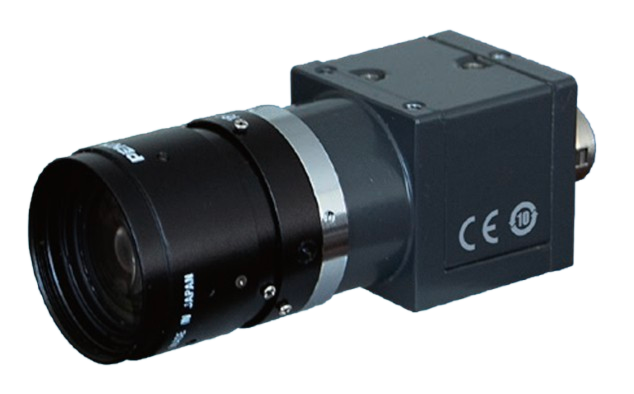

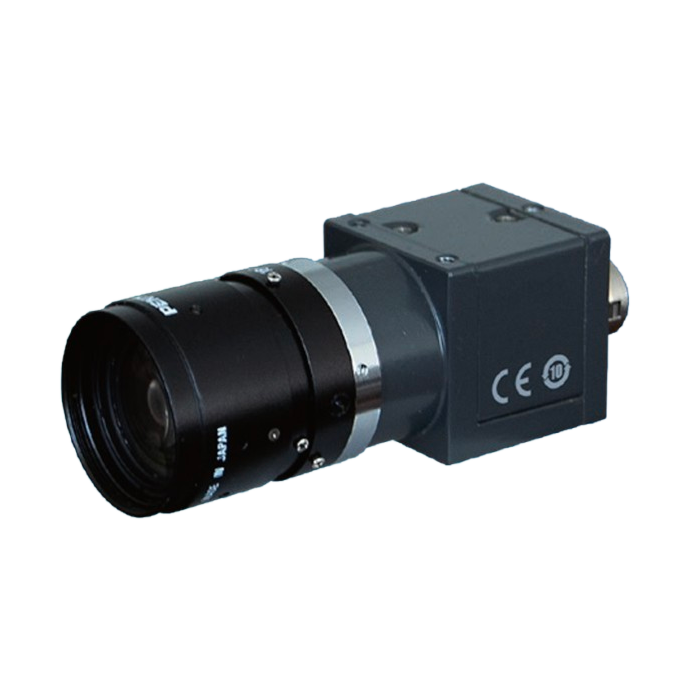

Kokusai Denki America KP-FMR520WCL Color Single CMOS Sensor Compact Camera Link Camera
The Kokusai Denki America KP-FMR520WCL delivers unparalleled performance for precision imaging applications. Featuring a 5-million-pixel global shutter CMOS sensor, this camera captures high-speed, distortion-free images at up to 35.7 frames per second. Its compact 29mm x 29mm x 29mm body and lightweight 45g design make it an ideal solution for installations in confined or space-critical environments.
With a resolution of 2448(H) x 2048(V) and 3.45μm x 3.45μm pixel size, the KP-FMR520WCL ensures detailed and vibrant image quality. The global shutter eliminates motion artifacts, ensuring stable video signals even for fast-moving subjects. Advanced features like selective frame rate adjustment and "Frame On Demand" enable precise capture timing through trigger input.
The camera supports a dual power supply, accommodating both direct DC12V±1V input and power supplied via the Camera Link cable for enhanced flexibility in system design. Partial scan and electronic shutter capabilities optimize data transfer and exposure control for dynamic imaging requirements. Designed for reliability and efficiency, the KPFMR520WCL is an indispensable tool for industrial, scientific, and machine vision applications.
Features:
- 5MP CMOS Sensor: 2448(H) x 2048(V) resolution, 3.45μm pixels
- Global Shutter: No motion distortion, ideal for fast subjects
- High-Speed Output: Up to 35.7ps
- Compact Design: 29mm³ dimensions, 45g weight
- Trigger Control: "Frame On Demand" for precise capture timing
- Flexible Power: DC12V±1V or Camera Link cable power
- Partial Scan: Optimized data transfer for fast processing
- C-Mount Lens: Versatile optical compatibility
Applications:
- Machine Vision: High-speed industrial inspections
- Scientific Imaging: Precision measurements and research
- Automation: Robotics and motion tracking
- Broadcast/Media: High-quality image capture
- Aerospace: Vibration and motion analysis
- Medical: Diagnostics and imaging systems
| Imaging Method | Global Shutter CMOS: Color |
| Imaging Pixels | 2448(H)×2048(V) |
| Frame Rate | Max. 35.7fps |
| Pixel Size | 3.45μm×3.45μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 167mA |
| External Dimensions | 29(W)×44(H)×41(D)mm (excluding protrusions) |
| Mass | Approx. 45g (excluding lens) |
