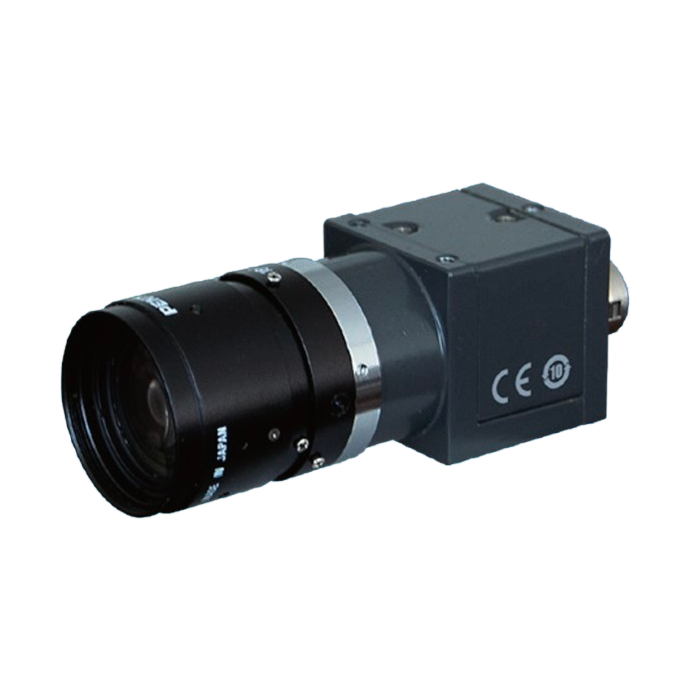

Kokusai Denki America KP-FMR30WCL Color Single CMOS Sensor Compact Camera Link Camera

The Kokusai Denki America KP-FMR30WCL is a compact, high-resolution camera designed for high-speed imaging in space-constrained environments. With a size of just 29mm x 29mm x 29mm and a weight of approximately 45g, this camera is ideal for applications requiring high-performance imaging in tight spaces. Featuring a global shutter sensor, it ensures distortion-free video capture even under fast-moving subject conditions, providing stable video signals without rolling shutter effects.

This model boasts a 0.38 MP resolution (720x540), capturing video at an impressive maximum frame rate of 523.5 fps. Its 6.9μm × 6.9μm pixel pitch delivers high-quality imaging with excellent detail at high speeds. The camera’s frame-on-demand function allows the capture of images at precise moments by triggering a signal, making it adaptable for various time-sensitive applications.

The KPFMR30WCL offers selectable frame rates, easily adjustable by configuring the Camera Link output tap and frequency. It also supports selective power supply options: the DC12V power can be provided through the Camera Link cable or from the DCIN/SYNC port, providing flexibility for integration. This model ensures efficient operation with low power consumption, drawing only 167mA at DC12V.

Features:

• 0.38MP resolution (720x540)
• 523.5fps maximum frame rate
• Global shutter for distortion-free video
• Compact size: 29x29x29mm, 45g
• Selective frame rates (Camera Link tap/frequency)
• Frame-on-demand trigger
• Selective power supply (Camera Link/DCIN/SYNC)
• 6.9μm x 6.9μm pixel pitch
• DC12V±1V, 167mA power consumption
• C mount lens

Applications:

• High-speed imaging
• Motion analysis
• Robotics vision
• Industrial inspection
• Scientific research
• Machine vision
• Surveillance systems
• Automation systems
