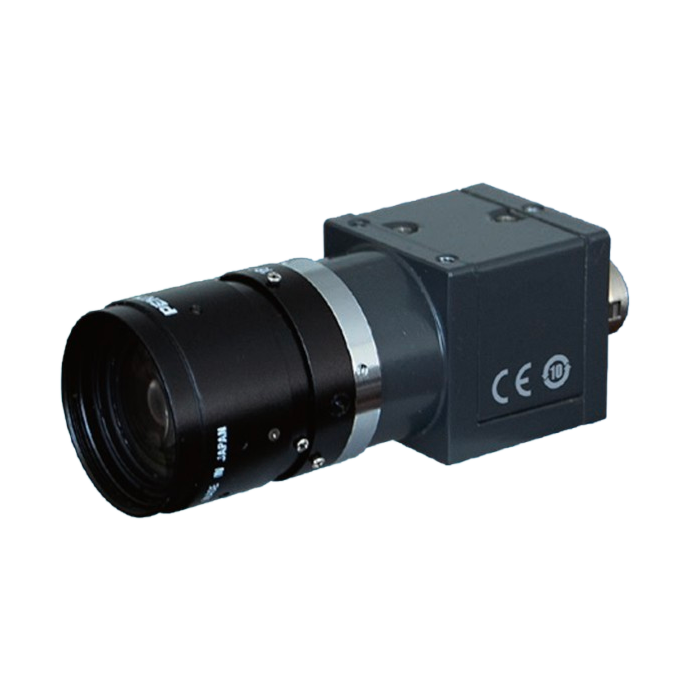

Kokusai Denki America KP-FMR230WCL Color Single CMOS Sensor Compact Camera Link Camera

The Kokusai Denki America KP-FMR230WCL is a high-performance industrial camera designed for precision imaging applications requiring exceptional speed and accuracy. Featuring a 2.3-million-pixel global shutter CMOS sensor, the KP-FMR230WCL delivers high-resolution imagery at 1920(H)×1200(V) with a pixel size of 3.45μm×3.45μm, ensuring sharp, detailed captures. This compact, lightweight camera measures just 29mm(W)×29mm(H)×29mm(D) and weighs approximately 45g, making it ideal for installations in confined or narrow spaces.

With a maximum frame rate of 92.6fps, the KP-FMR230WCL supports Frame-On-Demand functionality, allowing precise image capture through an external trigger input. Advanced features like partial scanning and selective frame rate adjustment via Camera Link output tap and frequency enhance flexibility for diverse applications. Its global shutter sensor eliminates motion distortion, making it ideal for high-speed subject imaging in industrial automation, machine vision, and scientific research.

This camera offers versatile power supply options, supporting both DC 12V (±1V) via the DCIN/SYNC port or power through a Camera Link cable connected to a frame grabber board. Built for durability and ease of integration, the KP-FMR230WCL is an exceptional choice for demanding imaging systems.

Features:

• Resolution: 2.3MP (1920x1200)
• Sensor: Global Shutter CMOS, 3.45μm pixel size
• Frame Rate: Up to 92.6fps
• Compact Size: 29mm x 29mm x 29mm, 45g
• Trigger Modes: Frame-On-Demand, Partial Scan
• Lens Mount: C-Mount
• Power Options: DC 12V or via Camera Link
• Output: Selectable frame rates, Camera Link interface
• Distortion-Free Imaging: Global shutter eliminates motion artifacts

Applications:

• Industrial Automation
• Machine Vision Systems
• Scientific Imaging
• High-Speed Object Inspection
• Robotics Vision
• Medical Imaging
• Motion Analysis
