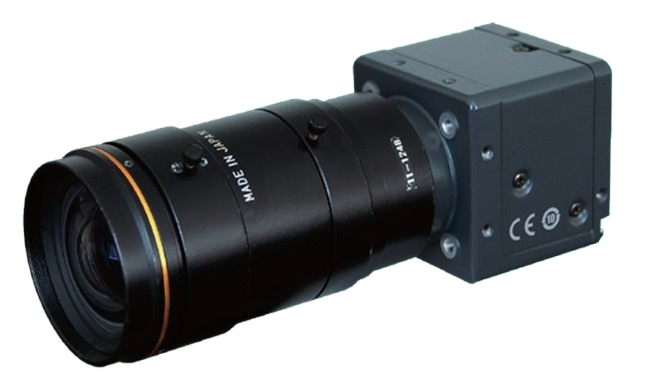

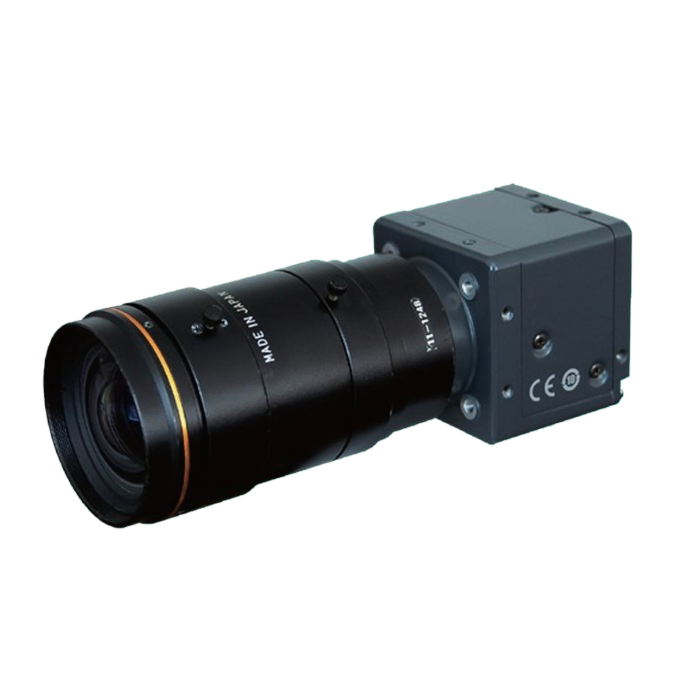

Kokusai Denki America KP-FMR1230WCL Color Single High Resolution CMOS Sensor Camera Link Camera
The Kokusai Denki America KP-FMR1230WCL (KPFMR1230WCL) is a high-performance, single high-resolution CMOS sensor camera designed for precision imaging and high-speed applications. With a global shutter and a maximum resolution of 12 million pixels (4096x3000), it offers distortion-free image capture even with fast-moving subjects. The camera is equipped with a 1.1-inch CMOS color sensor, which delivers exceptional image quality with fine pixel detail at 3.45μm x 3.45μm pixel size.
This model features selectable frame rates, providing flexibility in capturing high-speed sequences up to 67.1 frames per second. The camera supports Frame On Demand, allowing users to capture images at specific moments by triggering the camera with an external signal. Additionally, the selective frame rate functionality enables users to choose the optimal frame rate by adjusting the Camera Link output tap and frequency.
Power supply is versatile, supporting both DC power via the Camera Link cable or through the DCIN/SYNC port, offering convenience in integration. The camera’s compact design (44mm x 44mm x 41mm) and lightweight build (approximately 125g, excluding the lens) make it suitable for a variety of industrial, scientific, and imaging applications where space and performance are critical.
Features:
- 12MP CMOS sensor (4096x3000)
- Global Shutter for distortion-free imaging
- 67.1fps max frame rate
- 3.45μm x 3.45μm pixel size
- Frame On Demand trigger
- Selective frame rate (Camera Link output)
- Dual power supply: Camera Link or DCIN/SYNC
- Compact size: 44mm x 44mm x 41mm
- Lightweight: 125g (excluding lens)
- DC 12V ±1V, 300mA power consumption
Applications:
- High-speed imaging
- Industrial inspection
- Scientific research
- Robotics vision
- Medical imaging
- Quality control
- Machine vision systems
| Imaging Method | Global Shutter 1.1 inch CMOS: Color |
| Imaging Pixels | 4096(H)×3000(V) |
| Frame Rate | Max. 67.1fps |
| Pixel Size | 3.45μm×3.45μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 300mA |
| External Dimensions | 44(W)×44(H)×41(D)mm (excluding protrusions) |
| Mass | Approx. 125g (excluding lens) |
