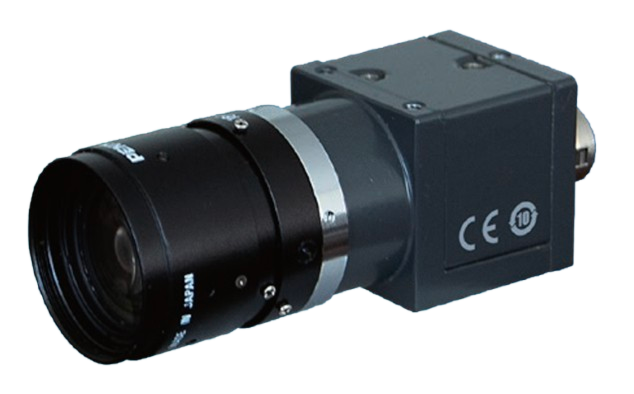

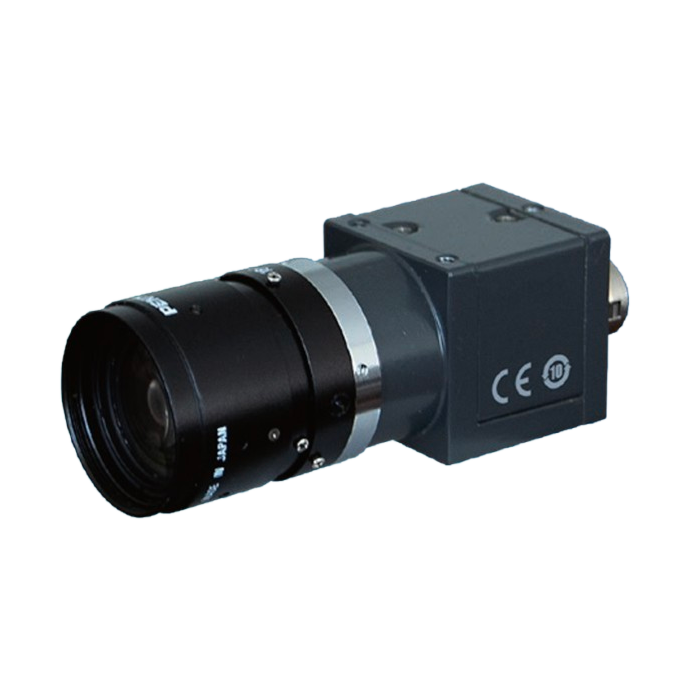

Kokusai Denki America KP-FM520WCL Monochrome Single CMOS Sensor Compact Camera Link Camera

The Kokusai Denki America KP-FM520WCL is a high-performance 5-megapixel camera designed for industrial and scientific imaging applications requiring precision and speed. Featuring a 2448(H) × 2048(V) resolution with a Global Shutter CMOS sensor, the KP-FM520WCL ensures stable, distortion-free image capture, even during rapid subject movement. With a maximum frame rate of 35.7fps, this camera is optimized for high-speed imaging tasks.

Compactly designed at 29(W) × 29(H) × 29(D) mm and weighing just 45g, it is ideal for installations in space-constrained environments. The C-Mount lens interface supports a wide range of lenses, enhancing versatility. The camera's trigger functionality enables on-demand image capture, while the partial scan and selective frame rate adjustment offer flexibility for various applications.

Engineered for reliability, the KPFM520WCL operates on a DC12V±1V power supply, consuming approximately 167mA, and supports power delivery via either the Camera Link cable or the DCIN/SYNC port. Its pixel size of 3.45μm × 3.45μm ensures detailed, high-quality imaging. Ideal for applications in automation, inspection, and scientific research, this camera delivers unmatched performance in a compact and durable form.

Features:

• Resolution: 2448(H)×2048(V), 5MP
• Sensor: Global Shutter CMOS, distortion-free
• Frame Rate: Up to 35.7fps
• Compact Design: 29×29×29mm, 45g
• Pixel Size: 3.45μm × 3.45μm
• Lens Mount: C-Mount
• Trigger Input: Frame-on-demand capture
• Scanning Modes: Partial scan capability
• Power Options: DC12V or Camera Link cable

Applications:

• Industrial Inspection: High-speed defect detection
• Automation: Real-time monitoring
• Scientific Imaging: Precision data acquisition
• Machine Vision: Robotics and AI systems
• Quality Control: Accurate measurements
• Medical Devices: Non-invasive imaging
