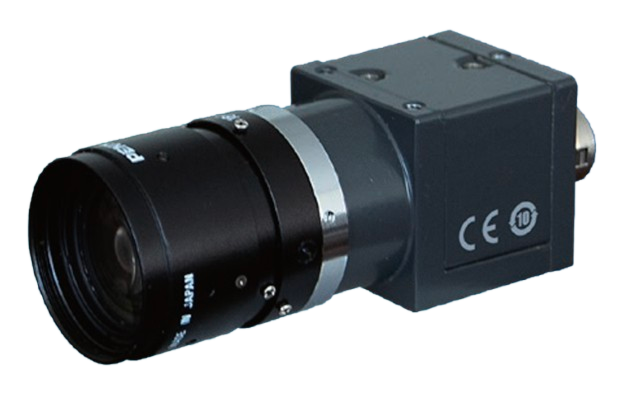

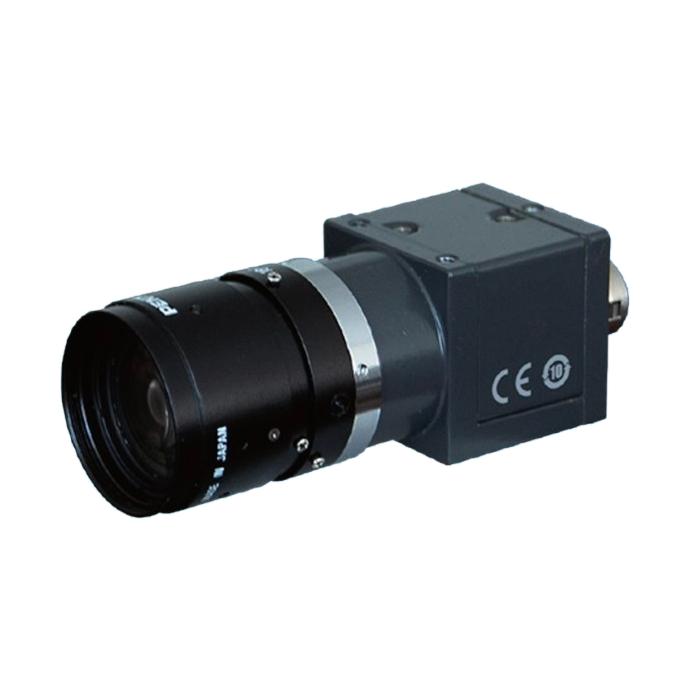

Kokusai Denki America KP-FM30WCL Monochrome Single CMOS Sensor Compact Camera Link Camera
The Kokusai Denki America KP-FM30WCL is a compact, high-speed CMOS camera featuring a 0.38 MP monochrome sensor (720×540 resolution) and a global shutter for distortion-free image capture. With frame rates up to 523.5fps, this camera is ideal for fast-moving subjects and precise imaging needs. The camera supports selective frame rates via Camera Link output tap and frequency adjustments, as well as on-demand frame capture using an external trigger.
Designed for space-saving applications, it has a small form factor of 29mm(W) × 29mm(H) × 29mm(D) and weighs only 45g. Power is supplied via the Camera Link cable or through the DCIN/SYNC port, offering flexible integration options. With partial scan and electronic shutter features, the KPFM30WCL delivers high-speed performance in a reliable, compact package.
Features:
- 720×540 Resolution
- 523.5fps Max Frame Rate
- Global Shutter
- Selective Frame Rate
- On-Demand Frame Capture
- Partial Scan
- Electronic Shutter
- DC12V±1V Power Input
- Camera Link & DCIN/SYNC Power Options
- 45g Weight
- 29mm³ Compact Size
Applications:
- High-Speed Imaging
- Motion Capture
- Machine Vision
- Industrial Automation
- Quality Control
- Robotics
- Medical Imaging
- Surveillance
| Imaging Method | Global Shutter CMOS: Mono |
| Imaging Pixels | 720(H)×540(V) |
| Frame Rate | Max. 523.5fps |
| Pixel Size | 6.9μm×6.9μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 167mA |
| External Dimensions | 29(W)×44(H)×41(D)mm (excluding protrusions) |
| Mass | Approx. 45g (excluding lens) |
