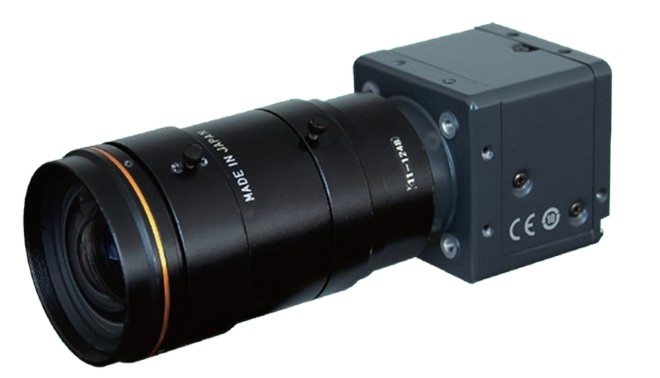

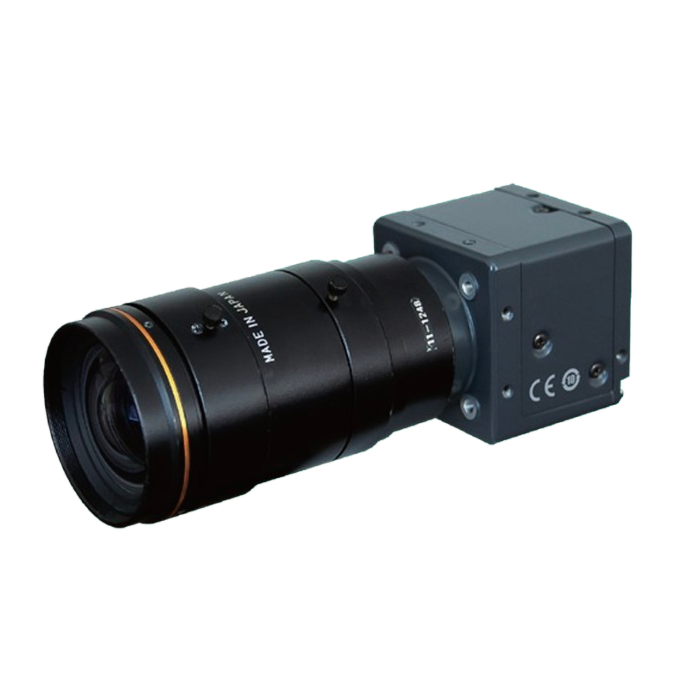

Kokusai Denki America KP-FM1230WCL Monochrome Single High Resolution CMOS Sensor Camera Link Camera
The Kokusai Denki America KP-FM1230WCL is a high-performance industrial camera designed for precision imaging in high-speed and high-resolution applications. Featuring a 1.1-inch global shutter CMOS sensor, this camera delivers up to 12 million pixels of resolution with a 4096(H) x 3000(V) pixel array. The camera supports both monochrome (KP-FM1230WCL) and color (KP-FMR1230WCL) variants, providing exceptional flexibility for various imaging needs.
Key technical features include selectable frame rates, with a maximum of 67.1 frames per second, ensuring reliable, distortion-free video capture even during fast-moving subject observation. The global shutter functionality is crucial for eliminating motion blur or distortion caused by high-speed movements, making this camera ideal for applications such as robotics, machine vision, and scientific research.
The camera supports a Frame On Demand feature, enabling image capture at any timing via an external trigger signal input. With its Camera Link interface, the KPFM1230WCL offers versatile connectivity and ease of integration into existing systems, while the power supply can be managed directly through the Camera Link cable or via the DCIN/SYNC port, offering operational flexibility.
Compact and efficient, this camera has a form factor of 44mm x 44mm x 41mm and weighs approximately 125g (excluding lens), making it suitable for tight spaces and demanding environments. Powered by a 12V DC input, the KP-FM1230WCL operates at a low power consumption of approximately 300mA, providing both performance and energy efficiency.
Features:
- 12MP Resolution: 4096(H) x 3000(V)
- Global Shutter: Eliminates motion blur
- 67.1 fps Max: High-frame rate output
- Selectable Frame Rates: Adjustable via Camera Link
- Frame On Demand: Triggered image capture
- Camera Link Interface: Easy integration
- Low Power: 12V DC, 300mA
- Compact: 44mm x 44mm x 41mm, 125g
Applications:
- Machine Vision: High-speed inspection
- Robotics: Precision movement tracking
- Scientific Imaging: Accurate data capture
- Automated Systems: Trigger-based imaging
- Inspection Systems: Real-time video analysis
| Imaging Method | Global Shutter 1.1 inch CMOS: Mono |
| Imaging Pixels | 4096(H)×3000(V) |
| Frame Rate | Max. 67.1fps |
| Pixel Size | 3.45μm×3.45μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 300mA |
| External Dimensions | 44(W)×44(H)×41(D)mm (excluding protrusions) |
| Mass | Approx. 125g (excluding lens) |
