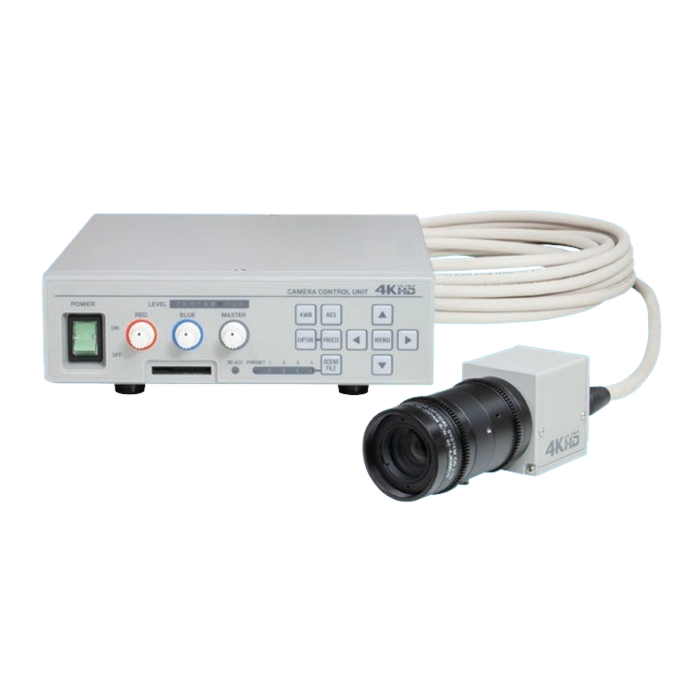

Kokusai Denki America HV-UHD301-S1 (HVUHD301S1) 3CMOS 4K Color Remote Head Small Size Camera
The Kokusai Denki America HV-UHD301-S1 is a compact, high-performance C-mount camera designed for professional imaging applications requiring superior resolution and flexible output options. It incorporates a 1/2.86-inch progressive scan CMOS sensor utilizing a 3-sensor pixel-shift method, delivering exceptional image clarity and sharpness. With simultaneous 4-channel output in 4K (12G-SDI, HDMI) and 2K (3G-SDI, HDMI), this camera supports resolutions of 2160/59.94p, 2160/50p, 1080/59.94p, and 1080/50p, ensuring compatibility with diverse workflows.
The HV-UHD301-S1 is equipped with Wide Dynamic Range (WDR) functionality and 6-color independent masking for precise color calibration and superior image detail, even in challenging lighting conditions. Additional features include 8x electronic zoom, digital noise reduction, freeze and screen reversal functions, and support for 4 scene files stored on an SD card. The robust build consists of a lightweight 34(W) x 40(H) x 40(D)mm camera head weighing only 80g and a compact 170(W) x 50(H) x 170(D)mm CCU unit.
Operating at F8.0 (2000 lx, 3200k) and capable of delivering clear images in low-light conditions at 2lx (f2.2, gain 30dB, video level 50%), the HV-UHD301-S1 is optimized for reliability and precision. Designed for system miniaturization without compromising visibility, it is an ideal solution for professional broadcasting, medical imaging, and industrial applications.
Features:
- Compact Design: 34x40x40mm head, 80g; 170x50x170mm CCU, 1100g.
- High-Quality Imaging: 1/2.86-inch CMOS, 3-sensor pixel shift.
- 4K/2K Outputs: Simultaneous 12G-SDI, HDMI (4K); 3G-SDI, HDMI (2K).
- Wide Dynamic Range (WDR): Enhanced detail in varied lighting.
- Color Control: 6-color independent masking.
- Advanced Functions: 8x zoom, freeze, screen reversal, digital noise reduction.
- Scene File Support: SD card writable, 4 slots.
- Low-Light Performance: 2lx @ f2.2, gain 30dB.
Applications:
- Broadcasting: High-resolution 4K live video.
- Medical Imaging: Precision detail and color calibration.
- Industrial Use: Compact design for machine vision.
- Security & Surveillance: Low-light performance, WDR.
- Scientific Research: High clarity, versatile outputs.
| Imaging Sensor | 1/2.86 inch progressive scan CMOS sensor(3 sensor pixel shift method adopted) |
| Standard Sensitivity | F8.0 (2000 lx, 3200k) |
| Minimum Illumination | 2lx (f2.2, gain30dB, video level 50%) |
| S/N Ratio | 60dB (12G-SDI, Ych, 120MHz) |
| Scan System | 4K (12G-SDI, HDMI) : 2160/59.94p, 2160/50p 2K (3G-SDI, HDMI) : 1080/59.94p, 1080/50p |
| Other Features | 8 times electronic zoom, Freeze function, Screen reversal function, Digital Noise Reduction, 4 Scene File(SD card writable) |
| Lens Mount | C-Mount |
| Cable Length | Standard 7m |
| External Dimensions | HEAD : 34(W)x40(H)x40(D)mm (Except protrusion) CCU : 170(W)x50(H)x170(D)mm (Except protrusion) |
| Mass. | HEAD : Approx. 80g CCU : Approx. 1100g |
