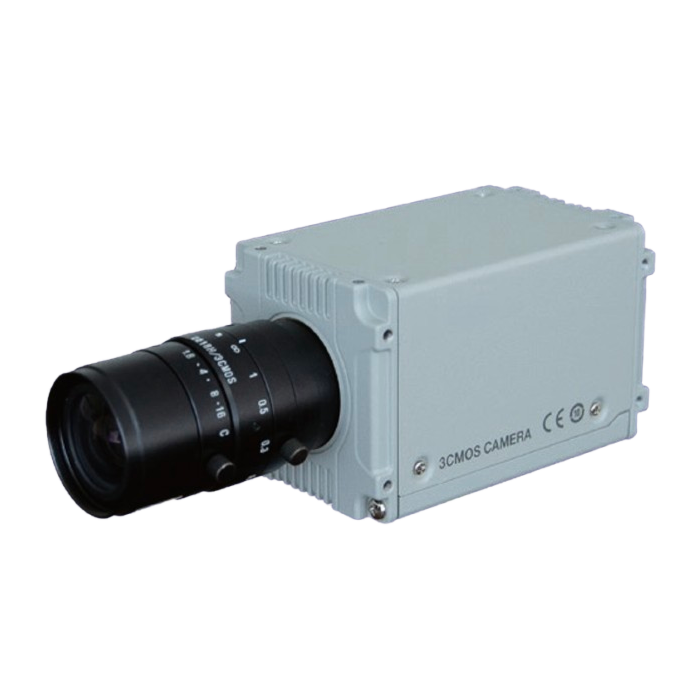

Kokusai Denki America HV-FM30WCL (HVFM30WCL) High Color Reproduction 3CMOS Sensors Progressive Scan Camera
The Kokusai Denki America HV-FM30WCL is a high-performance industrial camera designed for precision imaging applications requiring superior color reproduction, speed, and flexibility. This 0.38-megapixel camera features a 1/2.9-inch progressive scan CMOS sensor array with three sensors (Red, Green, and Blue), ensuring vibrant and accurate color output. Its independent 6-color masking technology supports precise adjustment across Red, Blue, Green, Cyan, Magenta, and Yellow channels, enabling unmatched image customization.
With a resolution of 720(H) × 540(V) pixels and a pixel size of 6.9 μm × 6.9 μm, the HV-FM30WCL delivers exceptional detail and clarity at an impressive frame rate of up to 200 fps. Auto Shading Correction (ASC) ensures consistent image quality by automatically correcting color unevenness, while Frame On Demand functionality allows image capture with precise timing via trigger signal input.
The camera offers versatile power supply options, including DC power through a Camera Link cable or a DCIN/SYNC port, enhancing installation flexibility. Compactly built at 55(W) × 55(H) × 89(D) mm and weighing approximately 220 g, the HV-FM30WCL is suitable for space-constrained setups. Additional features include a C-Mount lens interface, support for partial scan, an electronic shutter, and robust 12V DC power operation with 333 mA consumption.
Features:
- Resolution: 0.38 MP (720 × 540), 1/2.9-inch 3-sensor CMOS
- Frame Rate: High-speed 200 fps
- Pixel Size: 6.9 μm × 6.9 μm
- Color Masking: Independent 6-color masking (R, G, B, C, M, Y)
- Auto Correction: Auto Shading Correction (ASC) for color uniformity
- Trigger Functionality: Frame On Demand for precise capture timing
- Lens Mount: C-Mount compatibility
- Power Supply: DC via Camera Link or DCIN/SYNC port
- Build: Compact (55 × 55 × 89 mm), lightweight (220 g)
Applications:
- Industrial inspection and quality control
- Scientific imaging and research
- High-speed motion analysis
- Robotics and automation
- Precision color matching systems
- Microscopy and medical imaging
| Imaging Method | 1/2.9 inch progressive scan CMOS (3sensors) |
| Imaging Pixels | 720(H)×540(V) |
| Frame Rate | 200fps |
| Pixel Size | 6.9μm×6.9μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 333mA |
| External Dimensions | 55(W)×55(H)×89(D)mm (excluding protrusions) |
| Mass | Approx. 220g (excluding lens) |
