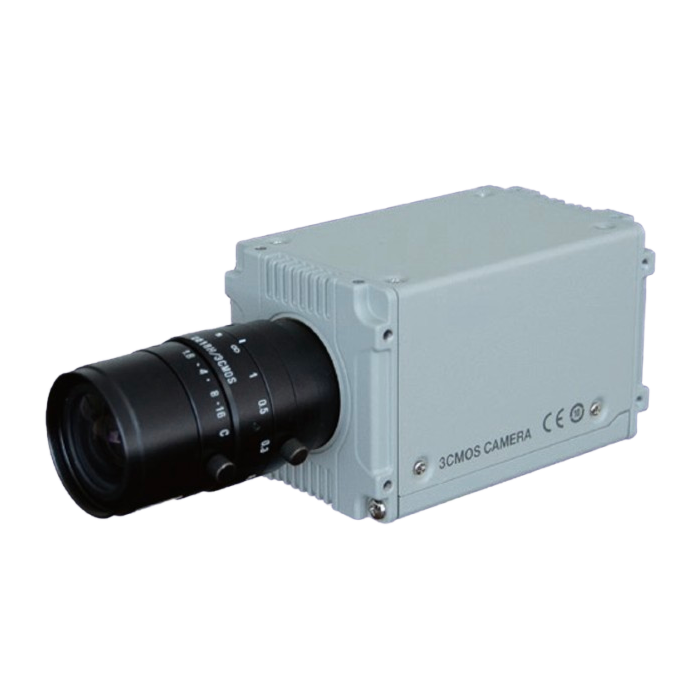

Kokusai Denki America HV-FM230SCL (HVFM230SCL) High Color Reproduction 3CMOS Sensors Progressive Scan Camera
The Kokusai Denki America HV-FM230SCL is a high-performance industrial camera designed to meet the rigorous demands of machine vision applications. Featuring a 1/2.3-inch progressive scan CMOS sensor with three sensors, this camera delivers sharp and vibrant images at a resolution of 1920(H) × 1200(V) with 2.3 million pixels. The pixel size is 3.45μm × 3.45μm, ensuring exceptional detail and accuracy. Operating at up to 30 frames per second, the HV-FM230SCL is equipped with an advanced 6-color independent masking system, including Red, Green, Blue, Cyan, Magenta, and Yellow, enabling precise color reproduction.
Key features include Auto Shading Correction (ASC) for real-time correction of color unevenness, ensuring consistent image quality. The Frame On Demand function allows image capture at precise moments through an external trigger signal, ideal for applications requiring accurate timing. Additionally, the camera supports a selective power supply option, allowing DC power delivery via a Camera Link cable or through the DCIN/SYNC port, offering flexibility in deployment.
The HV-FM230SCL includes support for Trigger, Partial Scan, and Electronic Shutter functions, providing enhanced versatility for custom imaging needs. With its compact dimensions of 55(W) × 55(H) × 89(D) mm and lightweight build of approximately 220g (excluding lens), the camera is easy to integrate into various systems. Designed for DC12V ± 1V power supply with a current draw of approximately 366mA, this robust camera is built for reliability and efficiency in demanding environments.
Features:
- High Resolution: 2.3MP, 1920×1200, CMOS sensor
- 6-Color Masking: Independent Red, Green, Blue, Cyan, Magenta, Yellow
- Auto Shading Correction: Real-time color uniformity
- Frame On Demand: Trigger-based image capture
- Partial Scan & Shutter: Flexible imaging modes
- Compact Design: 55×55×89mm, 220g
- Power Options: DC via Camera Link or DCIN/SYNC port
- High Frame Rate: 30fps
Applications:
- Machine Vision: Inspection and automation
- Industrial Imaging: High-speed production lines
- Scientific Research: Precision color analysis
- Medical Imaging: Accurate diagnostics
- Traffic Systems: Surveillance and monitoring
- Robotics: Embedded vision systems
| Imaging Method | 1/2.3 inch progressive scan CMOS(3sensors) |
| Imaging Pixels | 1920(H)×1200(V) |
| Frame Rate | 30fps |
| Pixel Size | 3.45μm×3.45μm |
| Lens Mount | C Mount |
| Mainly Functions | Trigger, Partial scan, Electronic shutter |
| Power Consumption | DC12V±1V approx. 366mA |
| External Dimensions | 55(W)×55(H)×89(D)mm (excluding protrusions) |
| Mass | Approx. 220g (excluding lens) |
