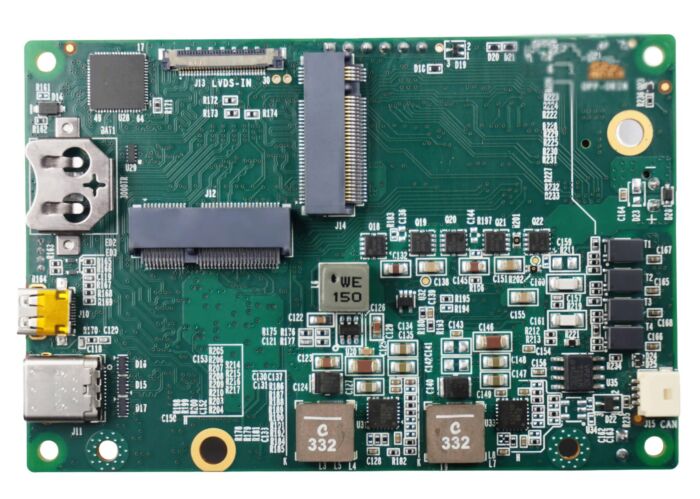

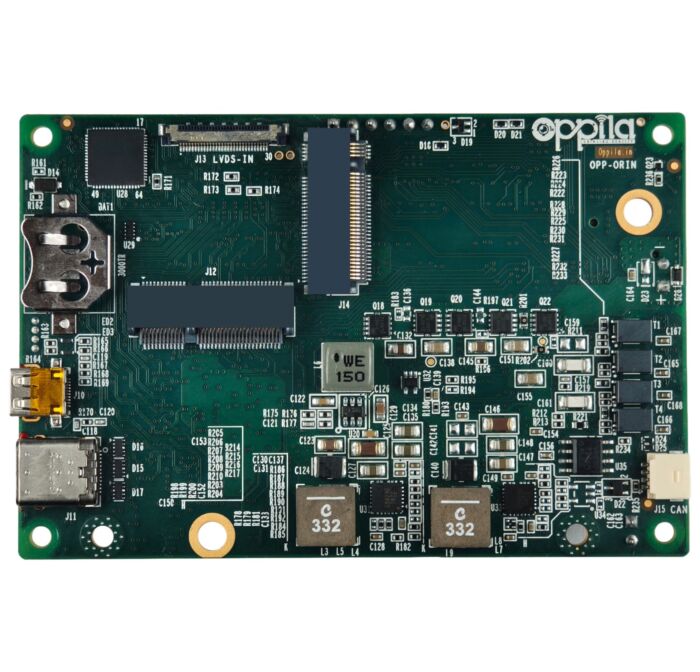

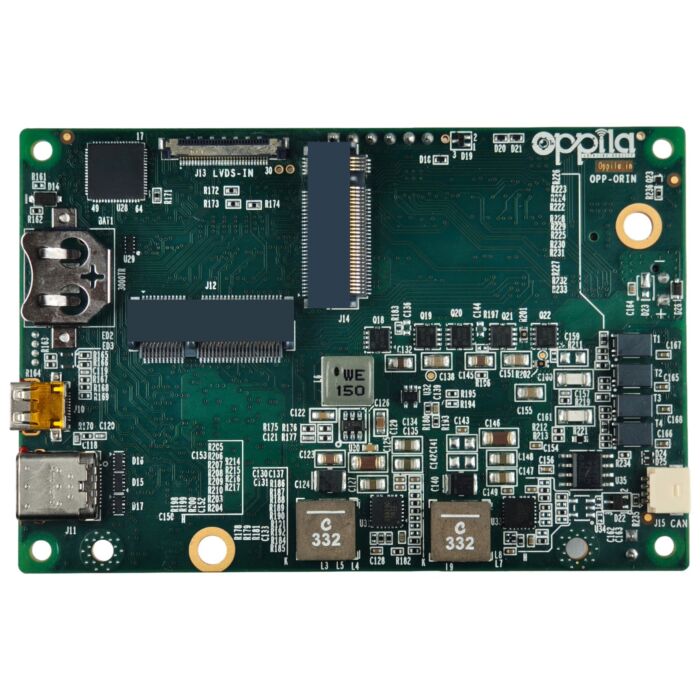

Jetson Orin Nano/NX AI Carrier Board | LVDS & MIPI CSI-2 Camera Interface, NVMe, Ethernet

The Jetson Orin Nano / NX AI Carrier Board is a compact, high-performance embedded platform engineered to fully leverage NVIDIA Jetson Orin Nano and Orin NX modules. Designed for robotics, UAVs, surveillance, and industrial AI systems, this carrier board enables real-time image processing, AI inference, and multi-interface camera integration in a rugged, deployment-ready form factor.

Unlike standard carrier boards, this platform is optimized for flexible camera integration across LVDS, MIPI CSI-2, and HDMI workflows, allowing developers to deploy both legacy and modern imaging systems within a unified architecture.

Unified Camera Integration Platform (LVDS, HDMI & CSI-2)

This carrier board is designed to support multiple camera interface types used across your ecosystem:

LVDS Camera Support

Compatible with Sony FCB LVDS block cameras including:

• Sony FCB-EV9520L
• Sony FCB-EV9500L
• Tamron and KT&C LVDS block cameras

Enables direct integration or use with LVDS to MIPI CSI-2 bridge boards

MIPI CSI-2 Camera Support

• Native 4-lane MIPI CSI-2 interface
• Direct connection for embedded vision camera modules
• Compatible with industrial and AI vision cameras

Ideal for low-latency, high-bandwidth AI pipelines

HDMI Camera Support (optional via bridge board)

Supports 4K HDMI block cameras such as:

• Sony FCB-ER9500
• Sony FCB-ER8530
• Sony FCB-EW9500H

Enabled through HDMI to MIPI CSI-2 bridge boards for full 4K integration

How This Fits Into Your CSI-2 Ecosystem

This board acts as the central processing platform for all camera interface solutions:

• LVDS Cameras → LVDS to CSI-2 Bridge → Carrier Board
• HDMI Cameras → HDMI to CSI-2 Bridge → Carrier Board
• MIPI Cameras → Direct CSI-2 → Carrier Board

One platform supports all camera types

Jetson AI Performance & System Integration

Built for Jetson Orin Nano Super Developer Kit and Orin NX modules, this carrier board enables:

• Real-time AI inference and vision analytics
• Multi-camera system integration
• High-speed data processing and storage
• Embedded deployment in rugged environments

Key Features:

• Supports Jetson Orin Nano & Orin NX modules
• LVDS camera interface for Sony FCB, Tamron, KT&C
• Native 4-lane MIPI CSI-2 camera interface
• HDMI camera support via CSI-2 bridge modules
• 1 Gbps Ethernet for networked vision systems
• M.2 Key M slot for NVMe SSD storage
• M.2 Key E slot for Wi-Fi / Bluetooth expansion
• Dual UART for VISCA camera control
• USB Type-C for flashing and debugging
• CAN, SPI, I²C, GPIO for system integration
• Micro HDMI output for display
• Onboard RTC and PWM-controlled fan
• Compact 90 × 60 mm industrial design
• Wide operating temperature (-25°C to +85°C)

Applications:

• AI edge computing and vision analytics
• Robotics and autonomous systems
• UAV and drone vision platforms
• Industrial machine vision and inspection
• Defense and surveillance systems
• Multi-camera embedded AI systems
• Embedded vision R&D and prototyping

Why Use This Carrier Board for Camera Integration

This platform simplifies complex camera integration challenges by providing:

• Support for multiple camera interface types (LVDS, HDMI, CSI-2)
• Direct compatibility with Jetson AI processing
• Reduced integration time for developers
• Scalable architecture for multi-camera systems
• Clean system design without unnecessary conversion layers
