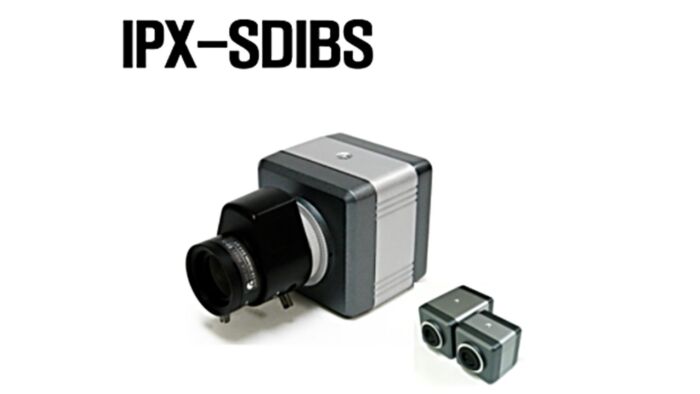

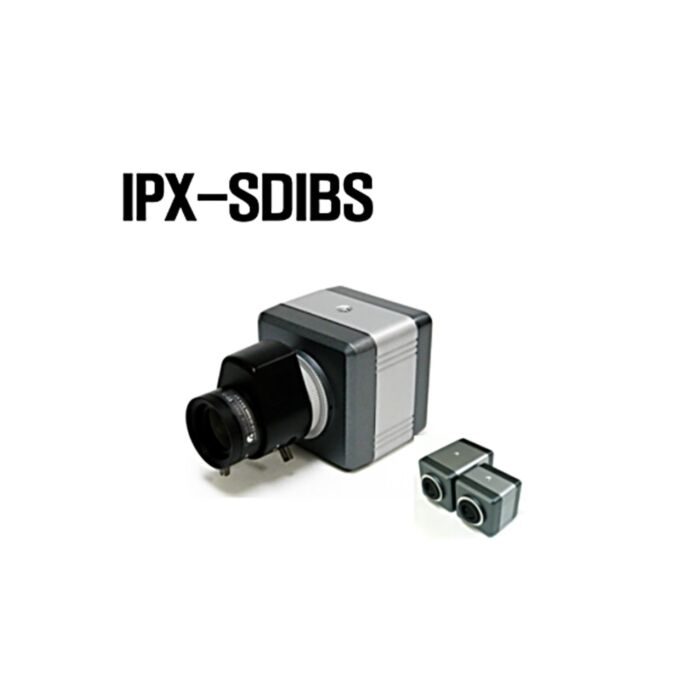

Infinite Pixels IPX-SDIBS FULL HD 1080p 60fps HDMI Mini Box Camera, 1/3" CMOS, Multi-Output (HDMI, HD-SDI, CVBS)
The Infinite Pixels IPX-SDIBS FULL HD HDMI Mini Box Camera delivers professional-grade imaging for broadcast, medical, and security applications. Equipped with a 1/3" progressive CMOS sensor producing 2.1MP resolution (2010×1108 total pixels, 1944×1092 active pixels), it supports full HD video up to 60fps and interlaced output at 1080i.
This versatile mini box camera features multiple video outputs—HDMI 1.3, HD-SDI/3G-SDI, and NTSC/PAL composite—allowing seamless integration into diverse workflows. The IPX-SDIBS offers low-light performance down to 0.01Lux with DSS x4, high S/N ratio (>50dB), and optional ICR for electronic day/night filtering. A C/CS lens mount provides flexibility for optics, while the Hirose power input ensures reliability for professional broadcast and medical devices.
Designed for high-performance imaging in compact spaces, the IPXSDIBS is ideal for live production, medical diagnostics, and high-fidelity security monitoring.
Features:
- High Frame per Second than normal HD-SDI Security camera
- (Motion video with better Movement)
- Multi Output of HDMI, HD-SDI, CVBS
- Day & Night vision with OSD Mode Change
- Hirose Type of Power Input Port, which is preferred in
- Broadcasting and medical Devices
Applications:
- Broadcast
- Medical Imaging
- Security
- Surveillance
| Image Sensor | 1/3 Inch progressive CMOS, 2.1Megapixel |
| Total PIxels | 2010(H) x 1108(V) / 2,227,080 (Pixel) |
| Active Pixels | 1944(H) x 1092(V) / 2,122,848 (Pixel) |
| Scanning System | Progressive Scan (Sync System Internal) |
| Video Output | HD-SDI / 3G-SDI |
| Video Output | 1920x1080 (25,30,50,60P),(50,60i) 1280x720p (50,60P) |
| Video Output | HDMI 1.3 |
| Video Output | NTSC,PAL Composite(1.0Vp-p ,75ohm) |
| Video Output | Color Bar Signal |
| Horizontal TVL | More than 1000 TVL |
| Minimum Illumination | 0.1Lux (F1.2,50 IRE,AGC MAX) / DSS X4:0.01 Lux |
| S/N Ratio | More than 50dB (AGC Off) |
| Lens Mount | C, CS |
| Serial Port | RS-232 |
| ICR (Filter change) | Yes (Option) |
| Electric Shutter | AUTO/MANUAL(1/30(25) ~ 1/30,000 sec) |
