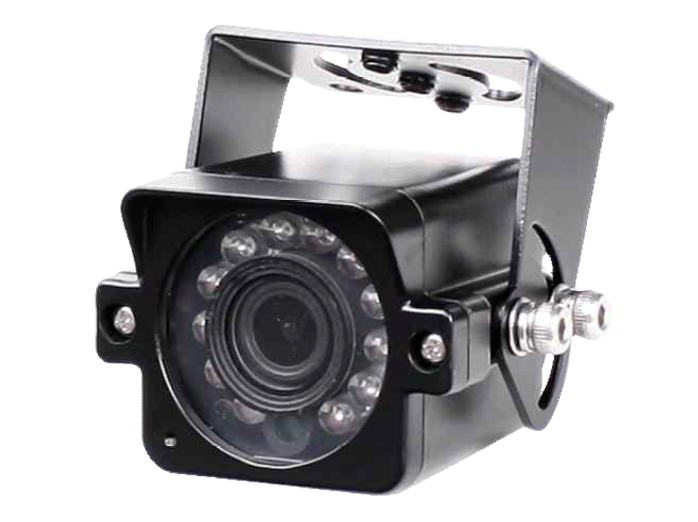

IPX-RF1Y7-2.8 Outdoor SDI Surveillance Camera, 1/2.8" 2.12MP Sony Starvis CMOS, 1080p30, 2.8mm Lens, 850nm IR, Multi-Format Video Out, IP66, 0.01 Lux

The IPX-RF1Y7-2.8 outdoor SDI surveillance camera features a cutting-edge 1/2.8” Sony Starvis CMOS sensor delivering 2.12 megapixels of progressive scan image data at resolutions up to 1080p30 (1920x1080 pixels at 30 frames per second). This sensor offers exceptional low-light performance with a minimum illumination of 0.01 Lux at F2.5 and 0 Lux with IR on, thanks to its 12 built-in 850nm IR LEDs. The camera supports wide dynamic range (WDR), digital slow shutter (DSS Sens-up to x32), and 3D noise reduction (3DNR), ensuring clear image capture in complex lighting scenarios such as strong backlighting or nighttime surveillance.

Equipped with a fixed 2.8mm M12 mount lens, the IPXRF1Y72.8 provides a broad 123.5° diagonal field of view, making it ideal for wide-area monitoring. It offers versatile video output options including HD-SDI, EX-SDI versions 1 and 2, as well as selectable analog formats like CVBS, AHD, TVI, and CVI. Housed in an IP66-rated weatherproof enclosure, this camera is built for outdoor durability in temperatures ranging from -10°C to 55°C. Additional features such as electronic shutter control (1/25 to 1/25,600 sec), OSD support, privacy masking, motion detection, and low power consumption (<3W) make it a robust solution for professional surveillance installations.

Features:

• 1/2.8” Sony Starvis CMOS sensor, 2.12MP (1920x1080) progressive scan
• Supports 1080p30, 720p60 HD-SDI and EX-SDI video output
• Multi-format analog video output (CVBS, AHD, TVI, CVI) selectable
• 2.8mm fixed M12 lens with 123.5° diagonal FOV
• 12 x 850nm IR LEDs for zero-light night vision
• Wide Dynamic Range (WDR), DSS (x32 Sens-up), 3D Noise Reduction
• Waterproof IP66-rated outdoor housing, -10°C to 55°C operating temp
• Electronic shutter 1/25 to 1/25,600 seconds
• Motion detection, privacy masking, defog, gamma correction
• Low power consumption (<2.8W), 12V DC input

Applications:

• Outdoor perimeter security monitoring
• Parking lot and facility surveillance
• Entrance and gate monitoring
• Low-light and night vision security scenarios
• Industrial and commercial outdoor CCTV systems
• Wide area coverage with broad field of view
