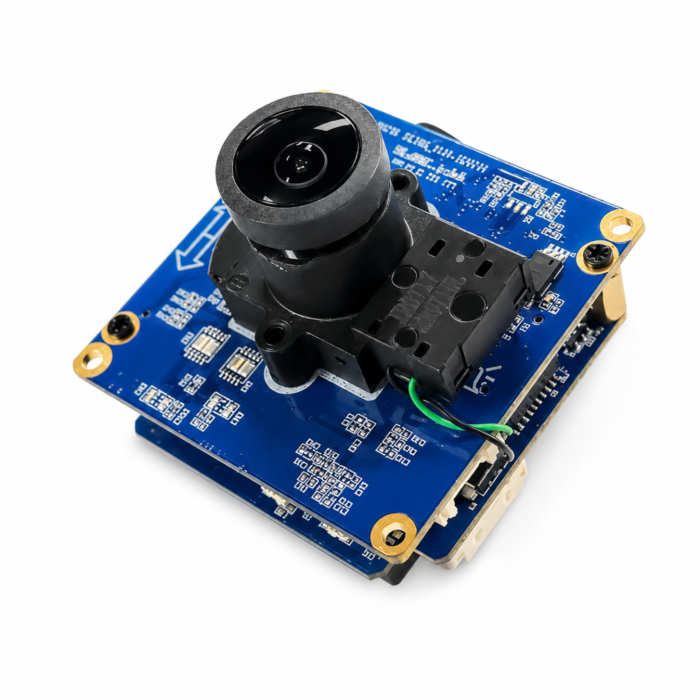

IPX NMG-542B60-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 6mm Lens
5MP IPX global shutter IP module camera with 6mm fixed lens, Sony 1/1.8" sensor, embedded Linux, H.265/H.264/MJPEG video, onboard AI object detection, trigger input, flash/IR output, and 42 x 42mm double-board design.
The IPX NMG-542B60-W is a compact 5MP global shutter IP module camera designed for applications that require a narrower field of view, improved subject detail, and reliable imaging of moving objects. Featuring a Sony 1/1.8" 5MP global shutter sensor, a 42 x 42mm double-board design, and a 6mm fixed focus lens, this module is ideal for industrial inspection, robotics, AI vision, traffic monitoring, UAV/drone imaging, machine vision, and surveillance systems.
The NMG-542B60-W uses a 64-bit Quad Core RISC-V SoC with Embedded Linux and supports H.265, H.264, and MJPEG video encoding up to 2592 x 1944 at 30fps. Its onboard NPU enables MobileNet V2 + SSDLite and YOLOv7 object detection, helping developers build compact edge AI camera systems for automation, analytics, and embedded vision platforms.
With trigger input, flash/IR output, WDR, HLC/BLC, 2D/3D noise reduction, brightness, contrast, and sharpness controls, the NMG-542B60-W provides a strong balance of compact size, global shutter performance, and intelligent video processing for OEM and industrial camera applications.
Key Features:
- 5MP Sony 1/1.8" global shutter image sensor
- 6mm fixed focus lens for tighter field-of-view imaging
- Compact 42 x 42mm double-board IP module camera
- Up to 2592 x 1944 resolution at 30fps
- 64-bit Quad Core RISC-V SoC with Embedded Linux
- H.265, H.264, and MJPEG video output
- Onboard NPU for MobileNet V2 + SSDLite and YOLOv7 object detection
- Trigger input and flash/IR output
- WDR, HLC/BLC, 2D/3DNR, brightness, contrast, and sharpness controls
- Designed for inspection, AI vision, robotics, traffic, surveillance, and embedded OEM systems
Applications:
- Machine vision inspection
- Robotics object detection
- AI edge camera systems
- Industrial quality control
- Traffic and license-area monitoring
- UAV/drone target observation
- Medical and laboratory imaging
- Security and surveillance systems
| Brand | IPX |
| Model | NMG-542B60-W |
| Camera Type | 5MP IP Module Camera |
| Board Design | Double Board |
| Board Size | 42 x 42mm |
| Image Sensor | Sony 1/1.8" 5MP Global Shutter Sensor |
| Shutter Type | Global Shutter |
| Resolution | Up to 2592 x 1944 |
| Frame Rate | Up to 30fps |
| Lens | 6mm Fixed Focus Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLOv7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Robotics, UAV/Drone, AI, Medical, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
