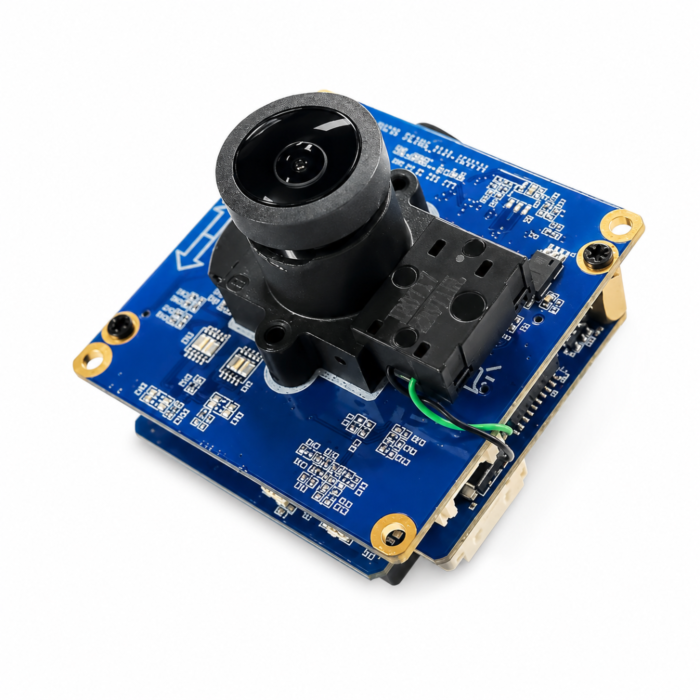

IPX NMG-342B40H-W 3MP Global Shutter IP Camera Module with 4mm Lens, 42x42mm Single Board

The IPX NMG-342B40H-W is a 3MP global shutter IP camera module built for compact embedded vision systems that require stable image capture, onboard video processing, and AI-ready object detection. Featuring a Sony 1/3" 3MP global shutter sensor, 64-bit Quad Core RISC-V SoC, embedded Linux, and a 42 x 42mm single-board design, this module is well suited for robotics, machine vision, UAV/drone imaging, intelligent traffic, industrial automation, surveillance, and inspection systems.

This version includes a 4mm fixed focus lens, offering a balanced field of view for general-purpose embedded camera applications. The 4mm lens provides a practical middle ground between wide-angle coverage and focused scene detail, making the NMG-342B40H-W a strong fit for object detection, traffic monitoring, warehouse automation, equipment monitoring, and industrial vision systems.

With H.265, H.264, and MJPEG video support, the NMG-342B40H-W is designed for efficient IP video transmission and integration into modern edge vision platforms. The onboard NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, helping system designers add intelligent image analysis directly into compact camera-based solutions.

Key Features:

• 3MP IP camera module with Sony 1/3" global shutter image sensor
• 4mm fixed focus lens for balanced field-of-view applications
• 42 x 42mm single-board form factor for compact embedded systems
• 64-bit Quad Core RISC-V SoC with embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 2048 x 1536 resolution at 30fps based on provided video specification
• NPU support for MobileNet V2 + SSDLite and YOLO7 object detection
• Trigger input and Flash / IR output for synchronized capture
• Image processing controls for WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness
• Designed for robotics, automation, AI vision, traffic, security, and inspection

Applications:

• General-purpose embedded vision systems
• Industrial machine vision and automation
• AI object detection at the edge
• Intelligent traffic and smart city monitoring
• Robotics and autonomous equipment
• UAV/drone inspection platforms
• Security and surveillance systems
• Factory inspection and quality control
