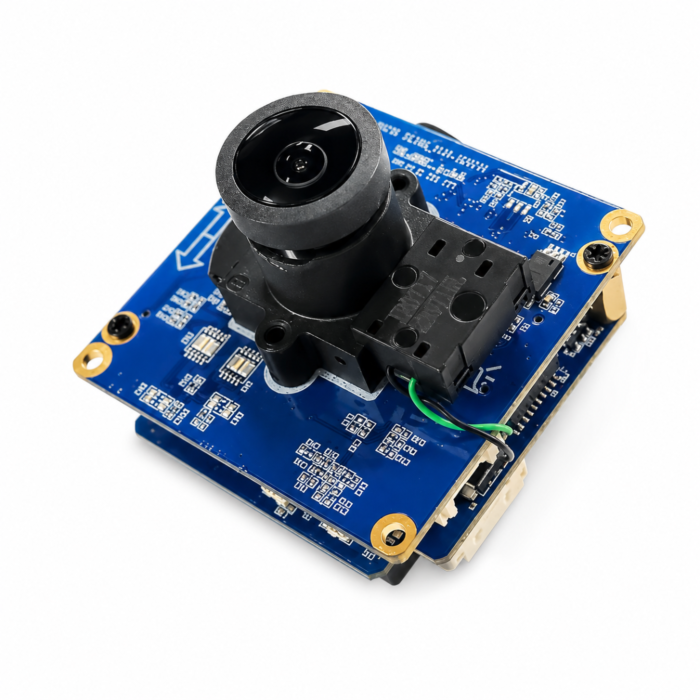

IPX NMG-342B28H-W 3MP Global Shutter IP Camera Module with 2.8mm Lens, 42x42mm Single Board
IPX NMG-342B28H-W 3MP global shutter IP camera module with 2.8mm lens, Sony 1/3" sensor, embedded Linux, RISC-V SoC, H.265/H.264/MJPEG video, AI object detection support, trigger input, Flash/IR output, and compact 42 x 42mm single-board design for robotics, UAV, machine vision, traffic, surveillance, and inspection applications.
The IPX NMG-342B28H-W is a compact 3MP global shutter IP camera module designed for embedded vision, robotics, UAV/drone imaging, machine vision, intelligent traffic systems, security, inspection, and AI edge analytics. Built on a 42 x 42mm single-board form factor, this module combines a Sony 1/3" 3MP global shutter image sensor with embedded Linux processing, efficient H.265/H.264/MJPEG video compression, and onboard AI object detection support.
This model includes a 2.8mm fixed focus lens, making it a strong choice for wider field-of-view applications where scene coverage is more important than narrow-distance targeting. The global shutter sensor helps reduce motion distortion, making the NMG-342B28H-W well suited for moving objects, mobile platforms, conveyor inspection, traffic monitoring, robotics navigation, and high-speed embedded vision environments.
Powered by a 64-bit Quad Core RISC-V SoC and integrated NPU support for MobileNet V2 + SSDLite and YOLO7 object detection, the NMG-342B28H-W provides a compact IP camera platform for intelligent vision systems that require real-time image capture, onboard video processing, and flexible lens integration.
Key Features:
- 3MP IP camera module with Sony 1/3" global shutter image sensor
- 2.8mm fixed focus lens for wide field-of-view embedded vision applications
- Compact 42 x 42mm single-board camera design
- 64-bit Quad Core RISC-V SoC with embedded Linux
- H.265, H.264, and MJPEG video compression
- Up to 2048 x 1536 resolution at 30fps based on provided video specification
- Integrated NPU support for MobileNet V2 + SSDLite and YOLO7 object detection
- Trigger input and Flash / IR output for synchronized imaging applications
- Image controls include sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR
- Ideal for robotics, UAV/drone imaging, intelligent traffic, industrial inspection, surveillance, and AI vision
Applications:
- Robotics navigation and embedded vision
- UAV/drone camera systems requiring wide area coverage
- Machine vision and factory automation
- Intelligent traffic monitoring and smart transportation
- AI object detection and edge vision systems
- Security, surveillance, and remote monitoring
- Industrial inspection and motion-sensitive imaging
- Medical, laboratory, and research imaging platforms
| Manufacturer / Brand | IPX / Infinite Pixels |
| Model Number | NMG-342B28H-W |
| Camera Type | 3MP IP Camera Module |
| Board Type | Single Board |
| Resolution | 3MP |
| Image Sensor | Sony 1/3" 3M Pixel Global Shutter Sensor |
| Shutter Type | Global Shutter |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Video Output | Up to 2048 x 1536 @30fps |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 Object Detection |
| Included Lens | 2.8mm Fixed Focus Lens |
| Lens Options | 2.8mm / 6mm / 8mm Fixed Focus Lens / 3x & 10x Motorized Zoom Lens |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Board Dimensions | 42 x 42mm |
| Recommended Use | Robotics, UAV/Drone, Machine Vision, AI, Intelligent Traffic, Surveillance, Industrial Inspection |
