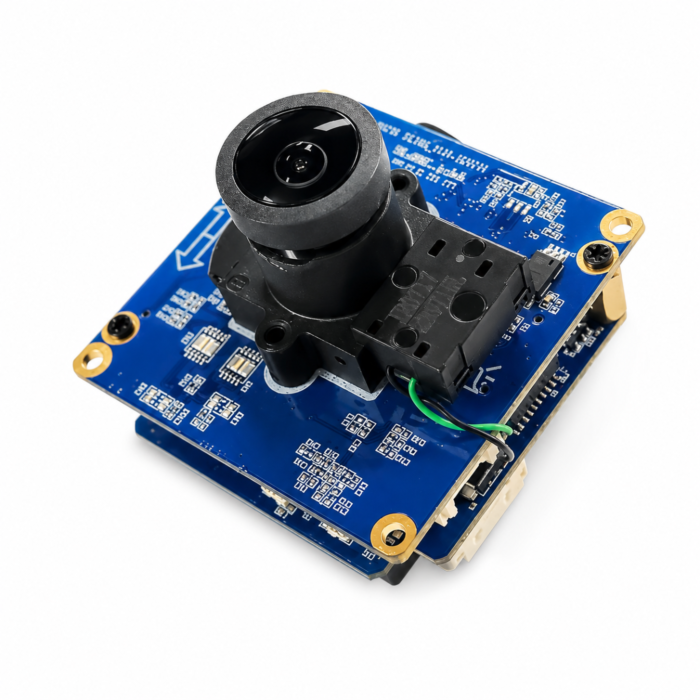

IPX NMG-242M4XH-W 2MP Global Shutter IP Camera Module, 42x42mm Double Board, 2.7-13.5mm Motorized Lens

The IPX NMG-242M4XH-W is a compact 2MP global shutter IP camera module with a 2.7-13.5mm motorized lens, giving embedded vision systems flexible zoom control while maintaining a compact 42 x 42mm double-board form factor. The ONSEMI AR0234 1/2.6" 2MP global shutter sensor helps capture moving subjects with reduced distortion, making this module ideal for robotics, UAV/drone imaging, machine vision, intelligent traffic, automation, surveillance, and inspection.

With its wider motorized zoom range starting at 2.7mm, this model is especially useful for applications that need both wide-area monitoring and closer detail capture from the same camera module. Embedded Linux, H.265/H.264/MJPEG video compression, onboard AI object detection support, trigger input, and Flash/IR output make the NMG-242M4XH-W a flexible platform for smart camera and edge vision integration.

Key Features:

• 2MP global shutter IP camera module with 2.7-13.5mm motorized lens
• Wide-to-telephoto field-of-view flexibility
• ONSEMI AR0234 1/2.6" 2MP global shutter image sensor
• 42 x 42mm compact double-board design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG compression
• AI object detection with MobileNet V2 + SSDLite / YOLOv7
• Trigger input and Flash/IR output
• Advanced image controls including WDR, HLC, BLC, 2DNR, and 3DNR
