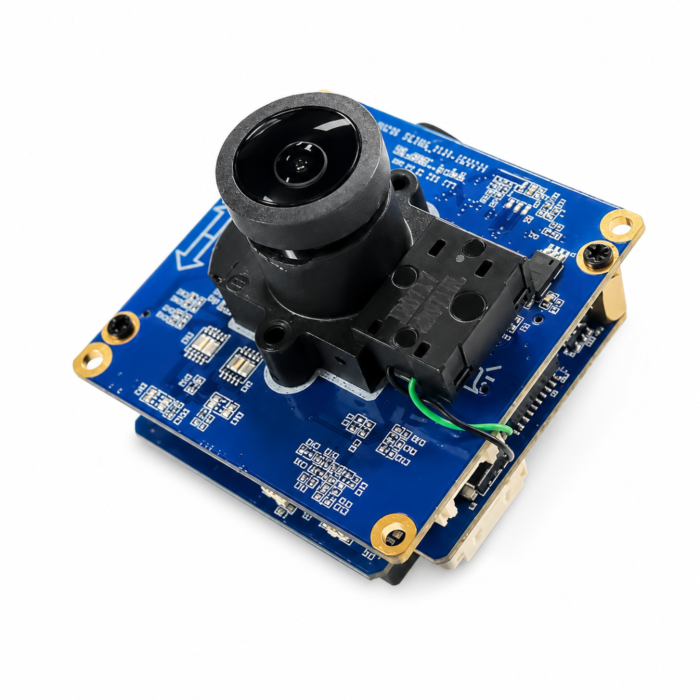

IPX NMG-242B60H-W 2MP Global Shutter IP Camera Module, 42x42mm Double Board, 6mm Lens, High Frame Rate

The IPX NMG-242B60H-W is a 2MP global shutter IP camera module designed for compact embedded imaging systems that require sharper target detail, reduced motion distortion, and reliable IP video performance. Using the ONSEMI AR0234 1/2.6" 2MP global shutter sensor, this camera module is ideal for fast-moving industrial, robotic, traffic, inspection, and automation environments.

The 6mm fixed focus lens provides a narrower field of view than the 2.8mm and 4mm models, making this version a good fit for applications that need more focused scene detail, part inspection, lane monitoring, machine vision alignment, object detection, or longer working-distance surveillance in a compact 42 x 42mm form factor.

Key Features:

• 2MP global shutter IP module for motion-sensitive imaging
• ONSEMI AR0234 1/2.6" 2MP global shutter sensor
• 6mm fixed focus lens for more focused target detail
• Compact 42 x 42mm double-board design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video support
• AI object detection with MobileNet V2 + SSDLite / YOLOv7
• Trigger input and Flash/IR output
• Image enhancement controls including WDR, HLC, BLC, 2DNR, and 3DNR
