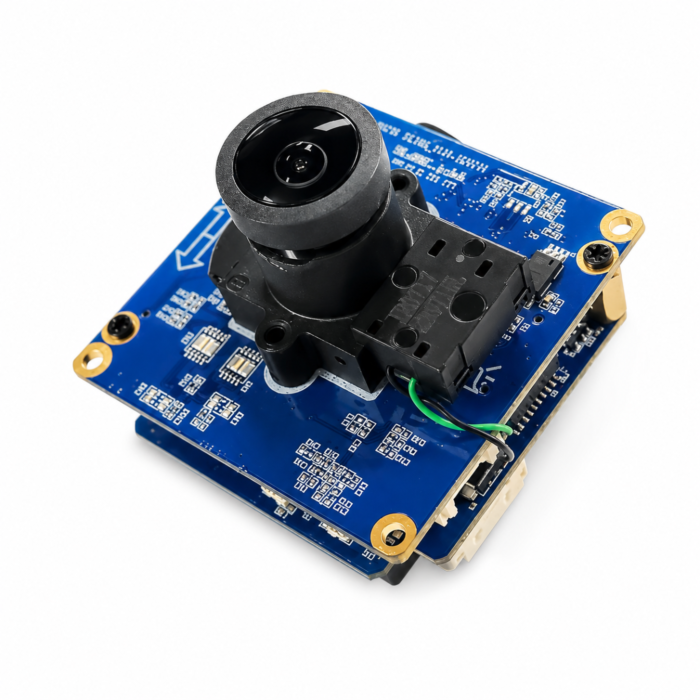

IPX NMG-242B40H-W 2MP Global Shutter IP Camera Module, 42x42mm Double Board, 4mm Lens, High Frame Rate

The IPX NMG-242B40H-W is a compact 2MP global shutter IP camera module built for high-speed industrial imaging, robotics, UAV/drone systems, AI vision, intelligent traffic, security, and machine vision applications. Featuring the ONSEMI AR0234 1/2.6" 2MP global shutter sensor, this module is designed to capture moving subjects with reduced rolling-shutter distortion.

This model includes a 4mm fixed focus lens, offering a balanced field of view for embedded vision applications that need both scene coverage and target detail. The 42 x 42mm double-board form factor, Embedded Linux platform, Quad Core RISC-V SoC, AI object detection support, and H.265/H.264/MJPEG compression make the NMG-242B40H-W a strong choice for smart IP camera integration.

Key Features:

• 2MP global shutter IP camera module for high-speed vision systems
• ONSEMI AR0234 1/2.6" global shutter image sensor
• 4mm fixed focus lens for balanced field-of-view imaging
• Compact 42 x 42mm double-board design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• AI object detection support with MobileNet V2 + SSDLite / YOLOv7
• Trigger input and Flash/IR output for synchronized capture
• WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness controls
