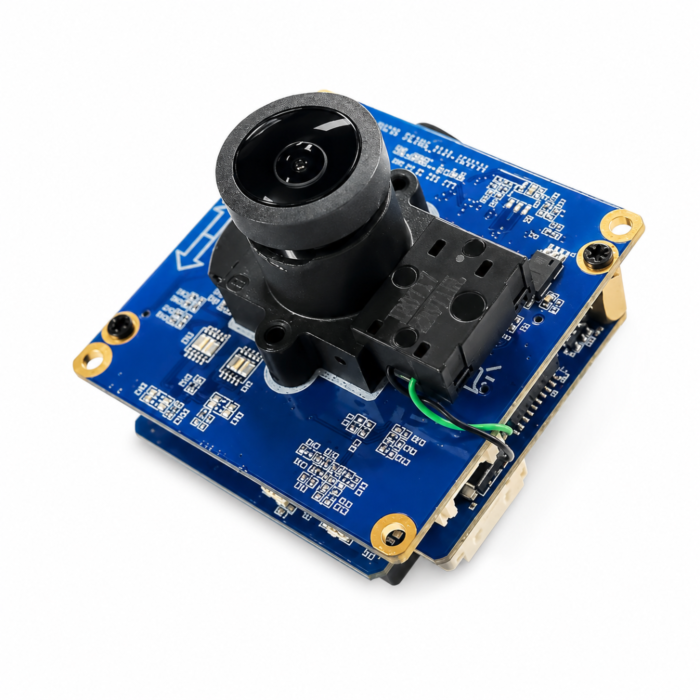

IPX NMG-242B28H-W 2MP Global Shutter IP Camera Module, 42x42mm Double Board, 2.8mm Lens, High Frame Rate

The IPX NMG-242B28H-W is a compact 2MP global shutter IP camera module designed for high-speed embedded vision, robotics, UAV/drone imaging, intelligent traffic, machine vision, surveillance, and industrial inspection applications. Built around the ONSEMI AR0234 1/2.6" global shutter sensor, this 42 x 42mm double-board camera module helps reduce motion distortion when capturing fast-moving objects, vehicles, packages, parts, robotics motion, and automation events.

This model features a wide 2.8mm fixed lens, making it well suited for applications that require a broader field of view in compact spaces. With a 64-bit Quad Core RISC-V SoC, Embedded Linux, H.265/H.264/MJPEG video compression, onboard AI object detection support, trigger input, and flash/IR output, the NMG-242B28H-W is built for smart vision systems that need reliable image capture and edge processing capability in a small form factor.

Key Features:

• 2MP global shutter IP camera module for reduced motion distortion
• ONSEMI AR0234 1/2.6" 2MP global shutter image sensor
• Wide 2.8mm fixed focus lens for broader scene coverage
• 42 x 42mm compact double-board camera design
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video compression
• Up to 1920 x 1080 video output
• AI object detection support using MobileNet V2 + SSDLite / YOLOv7
• Trigger input and Flash/IR output for synchronized imaging
• Image processing controls including sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR

Applications:

• Robotics and autonomous systems
• UAV and drone vision
• Machine vision and factory automation
• Intelligent traffic and vehicle monitoring
• AI object detection and edge vision systems
• Industrial inspection and quality control
• Security, surveillance, and remote monitoring
• Medical, laboratory, and embedded imaging systems
